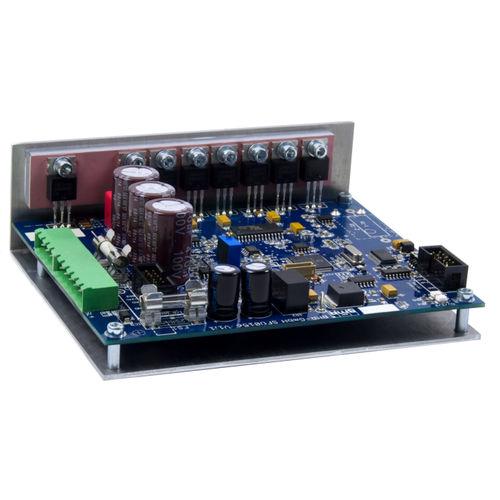

Motors spindle frequency converter SFU 0156open-framehigh-frequencyintegrated braking resistor
Add to favorites
Compare this product
Characteristics
- Mounting
- open-frame
- Applications
- for motor spindle
- Other characteristics
- high-frequency, integrated braking resistor
- Power
640 W
- Intensity
7 A, 9 A
- Output frequency
1,667 Hz, 4,000 Hz
Description
• Frequency converter for sensorless operation of AC- and BLDC spindles
• Rotational speeds up to 240000 rpm (4000Hz)
• Continuous output power up to 640VA / S1-100%
• on board chopper resistor
• Integrated blocking circuit with overvoltage generation of the spindle
- In case there is less space for mounting but high power is required
- The perfect solution for all CAD/CAM and dental applications
- Maximum performance at all operational ranges with outstanding high acceleration and deceleration capabilities
- For all temperature sensors: PTC, KTY and PT1000
