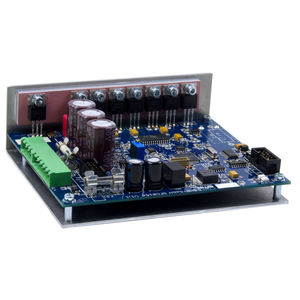

Motors spindle frequency converter SFU 0203
brushlesstabletopIP20

motors spindle frequency converter
motors spindle frequency converter
Add to favorites
Compare this product


Characteristics

Type
brushless
Mounting
tabletop
Applications
for motor spindle
Protection class
IP20
Other characteristics
high-frequency, integrated braking resistor
Power

480 W

Intensity

7 A, 9 A

Output frequency

1,667 Hz, 4,000 Hz

Description

• Frequency converter for sensorless operation of AC- and BLDC spindles • Rotational speeds up to 240000 rpm (4000Hz) • Continuous output power up to 480VA / S1-100% • Galvanic seperation of all interfaces from mains network • on board chopper resistor The perfect solution for all low voltage applications Maximum performance with dressing applications Easy integration into all applications because of various I/Os PIN compatible with SFU 0202 On board chopper-resistor For all temperature sensors: PTC, KTY and PT1000

Catalogs

Catalogue
Catalogue
52 Pages
