DC gear-motor Model 1395

spurhelical gearparallel-shaft

Product

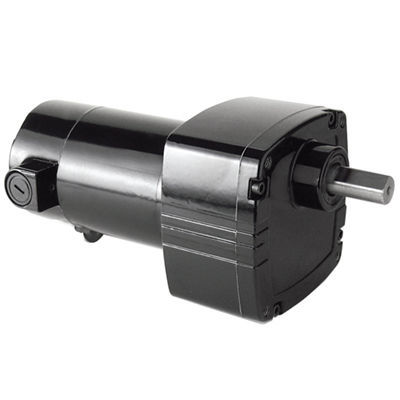

Parallel-shaft DC gearmotor Model 1395 from the Metric 24A-D series, intended for industrial applications requiring compact mounting, reliable starting torque and controllable speed characteristics.

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• 24A motor providing high starting torque, adjustable speed and predictable performance across a range of operating conditions.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearing on output shaft for increased radial load capacity and extended service life.
• Permanently lubricated gearing using oil for long life.
• Reinforced thermoplastic helical gear on the input stage for reduced noise and hardened steel spur gears on subsequent stages for high output torque.
• Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.
• Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).

Available Downloads / Drawing Types

• INFM0015-B: PDF / DWG / STEP (CAD drawings for Model 1395)
• Wiring diagram: 07410097 (wiring diagram available)
• Safety Data Sheet: Texaco Rando material safety data sheet (associated SDS)

Optional Accessories

• L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z (model 1968)
• IP-44 kit for 24A motors (model 0976)

Availability
Order Quantity: 1-25.

Technical specifications

• Speed (rpm): 29
• Rated Torque (Nm): 4.1
• Rated Torque (lb-in): 40
• Peak Torque (Nm): 6.2
• Peak Torque (lb-in): 55
• Power (Watts): 23
• Power (HP): 1/32
• Volts: 180
• Amps: 0.18
• Gear Ratio: 60
• Radial Load (N): 285
• Radial Load (lbs): 65
• Length XH (mm): 171
• Length XH (inch): 6.72
• Weight (kg): 2.0
• Weight (lbs): 4.5
• Connection Diagram: 07410097
• Product Type: 24A4BEPM-D3
• HPDecimal: 0.0312
