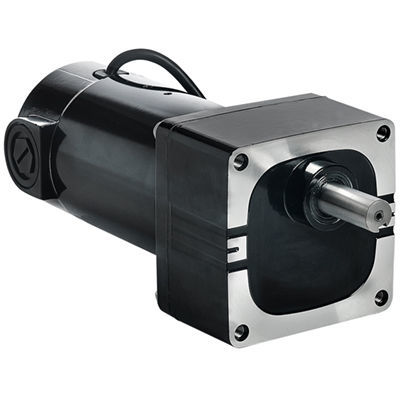

DC gear-motor Model 6251

planetaryparallel-shaft50 W...100 W

Product Model 6251 is a Metric 33A-W Series parallel-shaft DC gearmotor engineered for industrial applications requiring compact, parallel-shaft power transmission with defined speed and torque characteristics.

Specifications
Speed: 125 rpm
Rated torque: 3.0 Nm (27 lb-in)
Peak torque: 5.2 Nm (47 lb-in)
Power: 54 W (0.0714 HP)
Voltage: 180 V DC
Current: 0.41 A
Gear ratio: 13.8
Radial load capacity: 290 N (65 lbs)
Length XH: 224 mm (8.81 in)
Weight: 5.4 kg (11.75 lbs)
Connection diagram ref.: 07410097
Product type code: 33A5BEPM-W2

Downloads & Diagrams
CAD drawings (PDF, DWG, STEP), wiring diagram and safety data sheets available on the product page.

Standard Features
Performance ratings for 180 V models are based on operation with an unfiltered SCR speed control (Form Factor = 1.6).

Availability
Order quantity: 1–25 units.

Technical specifications

• Series: Metric 33A-W
• Model: 6251
• Speed: 125 rpm
• Rated torque: 3.0 Nm (27 lb-in)
• Peak torque: 5.2 Nm (47 lb-in)
• Power: 54 W (1/14 HP; HPDecimal 0.0714)
• Voltage: 180 V DC
• Current: 0.41 A
• Gear ratio: 13.8
• Radial load: 290 N (65 lbs)
• Length XH: 224 mm (8.81 in)
• Weight: 5.4 kg (11.75 lbs)
• Connection diagram reference: 07410097
• Product type code: 33A5BEPM-W2
