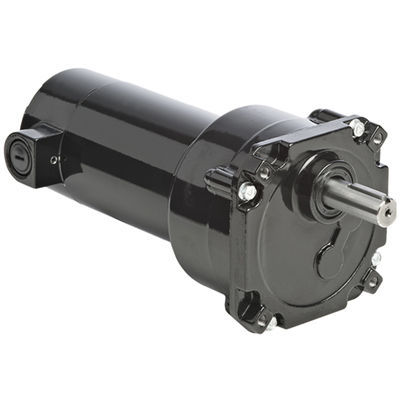

DC gear-motor Model 1163

brushedspurhelical gear

Product Overview
Metric 24A-Z Series parallel shaft DC gearmotor, Model 1163. The 24A motor delivers high starting torque, adjustable speed and consistent performance across a range of operating conditions. The gearhousing is unvented and the gearing is permanently lubricated for extended service life.

Specifications

• Speed (rpm): 9.6
• Rated Torque (Nm): 11.3
• Rated Torque (lb-in): 100
• Peak Torque (Nm): 13
• Peak Torque (lb-in): 115
• Power (Watts): 23
• Power (HP): 1/32
• Volts: 180 V DC
• Amps: 0.18 A
• Gear Ratio: 180
• Radial Load (N): 555
• Radial Load (lbs): 125
• Length XH (mm): 199
• Length XH (inch): 7.82
• Weight (kg): 2.3
• Weight (lbs): 5
• Connection Diagram: 07410097
• Product Type: 24A4BEPM-Z4
• HPDecimal: 0.0312

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• 24A motor provides high starting torque, adjustable speed, and predictable performance under varied operating conditions.
• Unvented gearhousing to protect internal components.
• Industrial lip-type seals on motor and output shafts.
• Needle bearing on output shaft for increased radial load capacity and extended life.
• Permanently lubricated gearing using oil for long service intervals.
• Wide reinforced thermoplastic helical gear on input stage for quiet operation and wide hardened steel spur gears on subsequent stages for high output torque and longevity.
• Helical pinion accurately cut on motor shaft for strength and low noise.
• Noise-tested ball bearings permanently lubricated.
• Locked bearing minimizes endplay.
• Performance ratings for 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).

Available Drawings & Documents

• CAD drawings: PDF, DWG, STEP available for Model 1163.
• Wiring Diagram: wiring-diagram-07410097 (reference).
• Safety Data Sheet: Texaco Rando material safety data sheet (reference).

Optional Accessories

• L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z Products (model 1968).
• L-Bracket Kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors (model 5968).
• IP-44 kit for 24A motors (model 0976).

Matching Controls & Parts

• Matching unfiltered SCR DC speed controls (examples shown on pages: 0865, 0866).
• Replacement parts and brushes for 24A series (example part numbers referenced in documentation).

Technical specifications

• Speed: 9.6 rpm
• Rated Torque: 11.3 Nm (100 lb-in)
• Peak Torque: 13 Nm (115 lb-in)
• Power: 23 W (1/32 HP, HPDecimal 0.0312)
• Voltage: 180 V DC
• Current: 0.18 A
• Gear Ratio: 180
• Radial Load: 555 N (125 lbs)
• Length XH: 199 mm (7.82 in)
• Weight: 2.3 kg (5 lbs)
• Connection Diagram Reference: 07410097
• Product Type: 24A4BEPM-Z4
