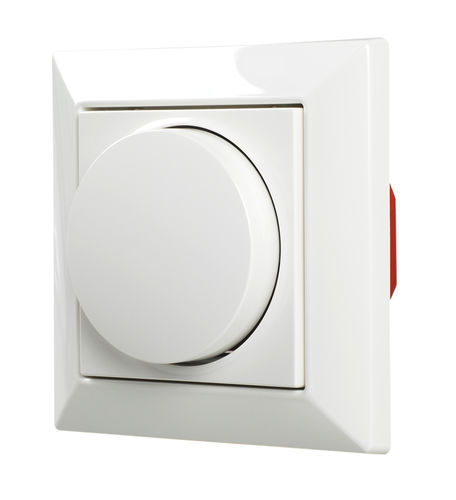

LED dimmer Comfort T55.01

Product description
Universal LED dimmer for consistent dimming regardless of LED manufacturer or type. Complete flush-mount unit suitable as a single-station solution or for integration into switch programs with a 55x55 mm cutout. Color: white (similar to RAL 9016). ISO-gate® Technology ensures a wide performance range and LED compatibility. Silent Technology provides noise-free operation. Manually switchable dimming principle (leading-edge or trailing-edge). Adjustable minimum and maximum brightness for flicker-free dimming. Electronic short-circuit and overload protection plus overtemperature protection with automatic reactivation. True on/off switch eliminates standby consumption. Compatible with switch ranges from Busch-Jäger, Gira, Berker, Jung and others. EHMANN advantage: 100% quality control, 5-year warranty, German manufacturer. EHMANN service: up-to-date LED lamp recommendations accessible via printed QR code.

Product data
Connection: Screw terminal
Mounting: Flush-mount
Color: White
LED power: 3 - 100 W LED
Power: 7 - 220 W/VA
Scope of delivery: Including cover
Dimming control: Universal
Control type: Rotary dimmer
Rated voltage: 230 V ~ (+/- 10%) / 50 Hz

Technical specifications

• Model: Comfort T55.01
• EAN (GTIN-13): 4012096007609
• Article number (SKU): 5591x0100
• Weight: 0.101 kg
• Dimensions (H×W×D): 71 mm x 71 mm x 53 mm
• LED power range: 3 - 100 W
• Max. power: 7 - 220 W/VA
• Connection type: Screw terminal
• Installation: Flush-mount (55x55 mm cutout)
• Color: White (similar to RAL 9016)
• Dimming principle: Leading-edge or trailing-edge, manually switchable
• Control type: Rotary dimmer
• Adjustable min./max. brightness for flicker-free dimming
• Protection: Electronic short-circuit, overload and overtemperature protection with automatic reactivation
• No standby consumption (true on/off switch)
• Technologies: ISO-gate® Technology, Silent Technology
• Compatibility: Compatible with common switch programs (e.g. Busch-Jäger, Gira, Berker, Jung)
• Warranty: 5 years
• Manufacturer: German manufacturer (EHMANN)
