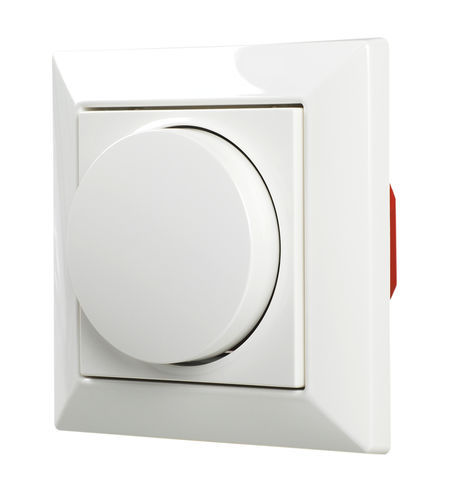

LED dimmer 5591x0000

Product description
Universal LED dimmer for reliable dimming independent of LED manufacturer and type. Complete unit — suitable as a single-location solution or for integration into switch programs with a 55×55 mm standard cutout. Color white (polar white / pure white similar to RAL 9010).

Functions and advantages

• ISO-gate® Technology – for a maximum performance range and broad LED compatibility
• Silent Technology – completely silent operation
• Selectable dimming principle (leading-edge or trailing-edge), manually switchable
• Easy adjustment of minimum and maximum brightness to optimize flicker-free dimming
• Automatic neutral conductor detection
• 2- or 3-wire connection possible
• Electronic short-circuit and overload protection and overtemperature protection with automatic reactivation
• No standby consumption thanks to a true on/off switch
• Compatible with switch systems from Busch-Jäger, Gira, Berker, Jung and others
• EHMANN advantage - 100% quality control, 5-year warranty, German manufacturer
• EHMANN service - current LED lamp recommendations available at any time via printed QR code

Scope of delivery

• Includes cover

Technical specifications

• Connection: screw terminal
• LED power: 3 - 160 W LED
• Power: 7 - 400 W/VA
• Rated voltage: 230 V~, 50 Hz
• 2- or 3-wire connection possible
• Color: white (polar white / pure white similar to RAL 9010)
• Scope of delivery: includes cover
• Weight: 0.101 kg
• Dimensions (H x W x D): 71 mm x 71 mm x 53 mm
• Article number (SKU): 5591x0000
• Warranty: 5 years
