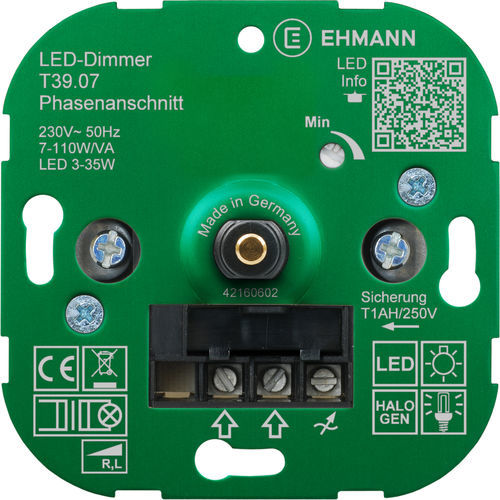

LED dimmer 3900x0700

Product information
LED in-wall dimmer, phase-cut (leading edge), 230 V, 50 Hz
Power: LED 3 - 35 W, 7 - 110 W/VA
Suitable for dimmable LED lamps, incandescent/HV/NV halogen with magnetic transformer
Rotary dimmer with push-toggle switch
Adjustment options for flicker-free dimming
Short-circuit/overload/overtemperature protection
Green-anodized mounting plate with QR code for LED recommendations
Includes switch-program adapter
Shaft: Ø 4 mm metal, connection: screw terminals

Technical data (table)
Connection: screw terminal
Mounting: in-wall (flush-mounted)
LED power: 3 - 35 W
Phase control: phase-cut (leading edge)
Control type: rotary dimmer with push-toggle switch

Features

• Rotary dimmer with integrated push-toggle switch
• Adjustment options for flicker-free dimming
• Short-circuit, overload and overtemperature protection
• Green-anodized mounting plate with QR code for LED recommendations
• Supplied with switch-program adapter
• Shaft Ø 4 mm, metal
• Connection via screw terminals

Characteristics / Specifications

• Voltage: 230 V, 50 Hz
• LED power range: 3 - 35 W
• Additional power rating: 7 - 110 W/VA (for other load types)
• Suitable for: dimmable LED lamps, incandescent, HV- and NV-halogen (with magnetic transformer)
• Phase control: phase-cut (leading edge)
• Protection functions: short-circuit, overload, overtemperature
• Mechanics: shaft Ø 4 mm (metal)
• Connection type: screw terminals
• Mounting type: in-wall (flush-mounted)
• Scope of delivery: switch-program adapter
