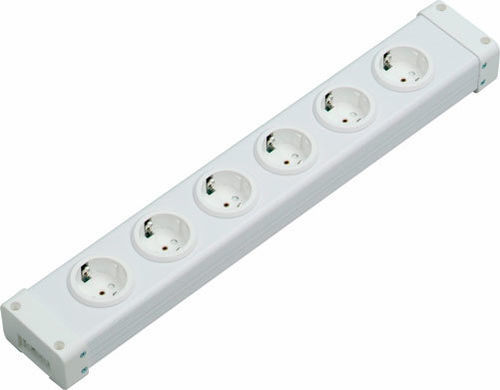

Schuko type power strip 0109x0051
6 socket

Schuko type power strip - 0109x0051 - Bodo Ehmann GmbH - 6 socket
Schuko type power strip - 0109x0051 - Bodo Ehmann GmbH - 6 socket
Add to favorites
Compare this product

Characteristics

Specifications
Schuko type
Number of sockets
6 socket
Intensity

Max.: 16 A

Min.: 10 A

Description

Product description
  • White robust plastic profile
  • Built-in 90° rotated round sockets
  • Extra-large spacing between sockets: 64 mm
  • Modular design: freely combinable and reconfigurable
  • Quick, safe tool-free connection
  • Supply connection via Wieland GST 18i3 connector
  • Extended touch protection with shutter
  • End caps with mounting hole
  • Sockets: protective contact Type F (Schuko)
  • Integrated fixing point
  • Ingress protection: IP20


Safety and warnings
  • Do not connect portable power strips in series
  • Do not operate the power strip while it is covered
  • The sockets are live unless the mains plug is removed. Replace fuses only when unplugged
  • For use only in dry, enclosed indoor spaces
  • Operate only from a mains outlet protected at 16 A, 13 A or 10 A depending on model
  • Do not exceed the maximum rated power
  • Avoid use in adverse environments (relative humidity > 80%, wetness, ambient temperatures < 0°C or > 35°C, solvents, flammable gases, dust, vapors)
  • Do not operate if external damage from transport or mishandling is visible; remove from service
  • Never pour liquids onto the power strip. In case of liquid ingress, unplug immediately and consult a qualified technician
  • Only qualified electricians may open the unit after it has been disconnected from mains


Technical specifications
  • Color: white
  • Housing: plastic
  • Switch: none
  • Outlet count: 6
  • Supply connection: connectable via Wieland GST 18i3 connector
  • Sockets: protective contact Type F
  • Ingress protection: IP20
  • Extended touch protection: shutter
  • End caps: with mounting hole
  • Integrated fixing hole: yes
  • Product number (SKU): 0109x0051
  • EAN / GTIN13: 4012096010906
