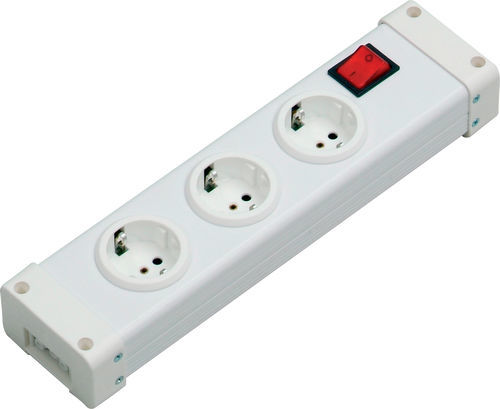

Power strip with switch 0103x00313 socket
Add to favorites
Compare this product
Characteristics
- Specifications
- with switch
- Number of sockets
- 3 socket
- Rated voltage
Min.: 250 V
Max.: 250 V
- Intensity
Min.: 16 A
Max.: 16 A
Description
Short description
Features
Safety and warnings
Technical specifications
- 3,600 W power
- 16 A rated current
- 250 V~, 50 Hz rated voltage
Features
- Durable white plastic profile
- Built-in round sockets rotated 90°
- Extra large spacing between sockets: 64 mm
- Modular design: freely combinable and reconfigurable
- Tool-free, fast and secure connection
- Connecting lead attached using Wieland GST 18i3 connector
- Enhanced touch protection via built-in shutter
- End caps with mounting hole
Safety and warnings
- Portable power strips must not be connected in series.
- Do not operate the power strip covered.
- Sockets are live unless the mains plug is disconnected. Replace fuses only with mains plug disconnected.
- Use only in dry, enclosed rooms; connect only to a mains socket protected according to device version (e.g. 16 A, 13 A or 10 A).
- Do not exceed the maximum rated power.
- Avoid operation under adverse environmental conditions (relative humidity over 80%, wet conditions, ambient temperature below 0°C or above 35°C, solvents, flammable gases, dust, vapors).
- If the unit is visibly damaged, take it out of service immediately.
- Never pour liquids over the power strip; if contact occurs, disconnect the mains plug and consult qualified personnel.
- Opening the power strip may expose live parts; opening must be performed only by qualified electricians after disconnection from the mains. Opening voids the warranty.
Technical specifications
- Item number (SKU): 0103x0031
- EAN: 4012096010333
- Power: 3,600 W
- Rated current: 16 A
- Rated voltage: 250 V~, 50 Hz
- Material: Durable white plastic profile
- Sockets: Built-in, 90° rotated, round
- Distance between sockets: 64 mm
- Connection: Wieland GST 18i3 connector
- Touch protection: Shutter
- End caps: with mounting hole
- Connection: tool-free, fast and secure connection
- Price (incl. VAT): 50.73 EUR
- Price (net, calculated with 19% VAT): 42.65 EUR
