AC distribution panel 0530x0000000

low-voltage

Product information
Output: 1 x CEE 32 A, 400 V~
1 x CEE 16 A, 400 V~
4 x socket 230 V~

Protection:
1 x MCB 32 A, 3-pole, type C
1 x MCB 16 A, 3-pole, type C
2 x MCB 16 A, 1-pole, type C
with RCD 40 A, 4-pole, 30 mA across all outputs (Type A)

Robust impact-resistant housing made of high-quality ABS plastic
Wall-mounted installation
Protective devices housed under a lockable, impact-resistant polycarbonate cover
Sockets with self-closing hinged lids made of impact-resistant polyamide 6

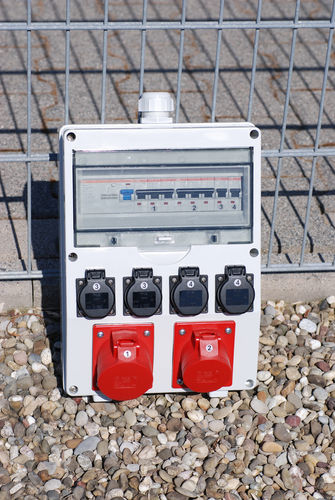

Configuration: hinged-lid sockets 4 x 16A/230V, 1 x 16A/400V, 1 x 32A/400V
Protection devices (example): ABB – 1 x 3-pole MCB, 4 x 1-pole MCB, RCD 40A/400V Type A 30mA
Cable entry via PG M32 cable gland from top (M32 blind plug at bottom)
Made in Germany, 100% tested, serial number and test report available
Ingress protection: IP54

Safety and warnings
DANGER
Electric shock hazard from live components inside the unit
Risk of electric shock from live components when the unit is opened for maintenance or repair.
Hazards from work on an open unit by unqualified personnel.

• The unit must only be opened, maintained and repaired by qualified electricians wearing appropriate personal protective equipment. For unqualified users the unit must remain closed at all times.
• All internal components may only be replaced by qualified electricians wearing appropriate personal protective equipment.
• The five safety rules of electrical work must be followed.

WARNING
Fire risk due to incorrect maintenance
Omitted inspection of terminal screw connections can lead to cable fire inside the unit.
Torque checks on terminal screw connections must be carried out in accordance with DGUV regulation 3 or applicable national regulations (see manual).

Variants / Table
Variants: Wall distribution box

Characteristics / Technical specifications

• Output: 1 x CEE 32 A (400 V), 1 x CEE 16 A (400 V), 4 x 230 V sockets
• Protection: 1 x MCB 32 A (3-pole, type C), 1 x MCB 16 A (3-pole, type C), 2 x MCB 16 A (1-pole, type C)
• Personnel protection: RCD 40 A, 4-pole, 30 mA (Type A)
• Socket configuration: 4 x 16A/230V (hinged lid), 1 x 16A/400V, 1 x 32A/400V
• Enclosure material: ABS plastic (impact-resistant)
• Cover: lockable, impact-resistant polycarbonate cover for protective devices
• Hinged lids: impact-resistant polyamide 6
• Entry: PG M32 cable gland top (M32 blind plug bottom)
• Mounting: wall-mounted
• Ingress protection: IP54
• Manufacture: Made in Germany, 100% tested, serial number and test report available
• Protection device brand (example in text): ABB
• EAN: 4012096009511
