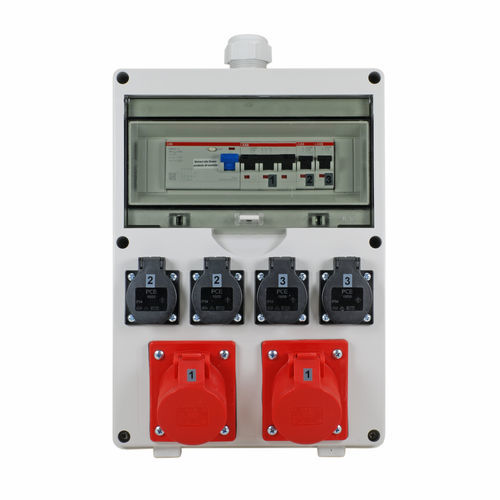

AC distribution panel 0530x0001000low-voltage
Add to favorites
Compare this product
Characteristics
- Options
- AC, low-voltage
Description
Product description
Outputs
2 x CEE 16 A, 400 V~
4 x socket 230 V~
Protection
Features
Quality, warranty and standards
Technical data
Outputs
2 x CEE 16 A, 400 V~
4 x socket 230 V~
Protection
- 1 x circuit breaker 16 A, 3-pole, type C
- 2 x circuit breaker 16 A, 1-pole, type C
- RCD (FI) 40 A, type A, 4-pole, trip current 0.03 A (30 mA) for all outputs
Features
- Impact-resistant ABS plastic enclosure
- Wall-mountable
- Protection devices located under a lockable, impact-resistant polycarbonate cover
- Sockets with self-closing flip covers made of impact-resistant polyamide 6
- Configuration: 4 x 16 A/230 V flip-cover sockets, 2 x 16 A/400 V CEE
- Cable entry via PG M32 cable gland (top); blanking M32 (bottom)
Quality, warranty and standards
- Protection components (ABB): 1 x 3-pole CB, 2 x 1-pole CB, RCD 40 A / 400 V type A 30 mA
- Made in Germany; 100% tested; serial number and test report available
- 5-year manufacturer warranty
- Compliant with BGI-GUV-I608 (K2)
- Protection rating: IP54
Technical data
- Outputs: 2 x CEE 16 A (400 V~), 4 x socket 230 V~
- Circuit protection: 1 x 16 A, 3-pole, type C; 2 x 16 A, 1-pole, type C
- Residual-current protection: RCD 40 A, type A, 4-pole, trip current 30 mA
- Enclosure material: ABS plastic, impact-resistant
- Protection device cover: lockable, impact-resistant polycarbonate
- Socket covers: self-closing flip covers made of polyamide 6
- Cable entry: PG M32 (top), blanking M32 (bottom)
- Testing: 100% tested; serial number and test report available
- Warranty: 5 years
- Standards: BGI-GUV-I608 (K2)
- Protection rating: IP54
