AC distribution panel 0530x0003000low-voltage
Add to favorites
Compare this product
Characteristics
- Options
- AC, low-voltage
Description
Product overview
Connections
Protection
Equipment
Cable entry
Quality & warranty
Standards & IP rating
Technical specifications

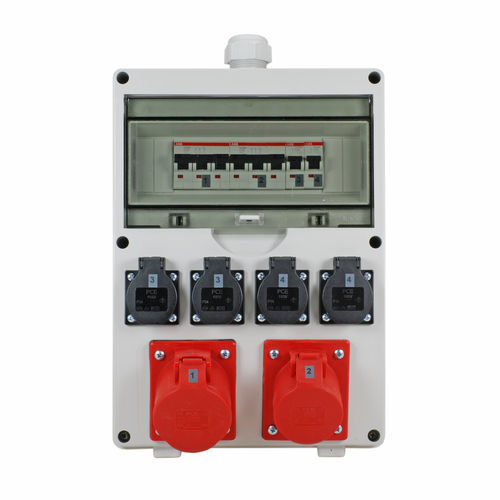

- PROFI wall distribution board with integrated circuit breakers for stationary use
- Robust, impact-resistant enclosure made of high-quality ABS plastic
- Easy wall mounting
Connections
- 1 x CEE 32 A, 400 V~
- 1 x CEE 16 A, 400 V~
- 4 x 230 V~ sockets
Protection
- 1 x MCB 32 A, 3-pole, characteristic C
- 1 x MCB 16 A, 3-pole, characteristic C
- 2 x MCB 16 A, single-pole, characteristic C
- Note on page: Protection (ABB): 2 x 3-pole MCB, 2 x 1-pole MCB (product text contains this information)
Equipment
- Protective switching devices under lockable, impact-resistant polycarbonate cover
- Sockets with self-closing hinged covers made of impact-resistant polyamide 6
- Hinged-cover sockets: 4 x 16A/230V, 1 x 16A/400V, 1 x 32A/400V
Cable entry
- Entry via PG M32 cable gland from above
- Blind gland M32 at bottom
Quality & warranty
- Made in Germany, 100% tested
- Serial number and test protocol available
- 5-year manufacturer warranty
Standards & IP rating
- BGI-GUV-I608 compliant (K2)
- Protection class: IP54
Technical specifications
- Output variants: 1x CEE 32A (400 V), 1x CEE 16A (400 V), 4x 230V sockets
- Protection: MCB 32A (3-pole, C), MCB 16A (3-pole, C), 2x MCB 16A (1-pole, C)
- Enclosure material: impact-resistant ABS plastic
- Cover: lockable polycarbonate cover
- Socket covers: self-closing hinged lids made of polyamide 6
- Cable entry: PG M32 (top), blind gland M32 (bottom)
- Protection class: IP54
- Conformity: BGI-GUV-I608 (K2)
- Origin & testing: Made in Germany, 100% tested, serial number & test protocol
- Warranty: 5 years
