AC distribution panel 0520x0002005construction siteequipped
Add to favorites
Compare this product
Characteristics
- Options
- AC, construction site, equipped
Description

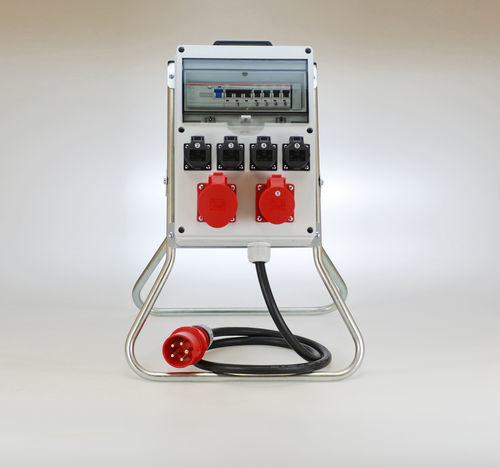

Product information PROFI distribution box with frame and RCD/MCB
Technical specifications
- PROFI QUALITY - MADE IN GERMANY: Fully assembled and ready-wired. Each unit is individually tested. Durable connectors and corrosion-resistant metal parts ensure long service life and high safety.
- EQUIPMENT: The full-rubber distribution box provides 6 outlets: 1 × CEE 32 A, 400V~ / 1 × CEE 16 A, 400V~ / 4 × 16 A socket 230V~. Supply cable: 2 m H07RN-F 5G 6.0 mm² with 32A/400V CEE plug.
- SAFETY: Integrated RCD type A, 40 A, 4-pole, 0.03 A (30 mA) protects all outputs. Additional miniature circuit breakers (MCBs) for: CEE 16 A, 3-pole and 230 V 16 A, 1-pole. Safety components are placed under a lockable, impact-resistant polycarbonate cover.
- EHMANN ADVANTAGE: Enclosure made of robust, weatherproof and impact-resistant ABS plastic. Compliant with BGI-GUV-I608. The distributor is designed for heavy daily use on construction sites. The frame protects against water and dirt.
- APPLICATION: The frame provides a stable base and can be removed for transport and storage. The distributor can also be mounted to the wall using fixing lugs.
Technical specifications
- Connections: 1 × CEE 32 A, 400V~; 1 × CEE 16 A, 400V~; 4 × 16 A socket 230V~
- Supply cable: 2 m H07RN-F 5G 6.0 mm² with 32A/400V CEE plug
- RCD: Type A, 40 A, 4-pole, 0.03 A (30 mA)
- MCBs: CEE 16 A (3-pole) and 230 V 16 A (1-pole)
- Housing material: ABS plastic, weatherproof and impact-resistant
- Cover: Lockable, impact-resistant polycarbonate cover
- Variants: Mobile distributor, stand distributor
- Compliance: BGI-GUV-I608
