Anti-fraud turnstile TF600

automaticswing

General description

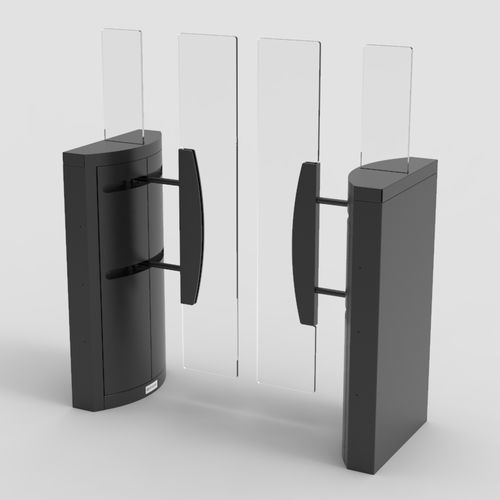

The Bolloré TF600 automatic pedestrian swing gate controls bidirectional pedestrian access with a detection system that enforces single-person passage. PMR-accessible, it enables non-discriminatory flow management. The compact unit is adaptable to specific safety and security requirements for indoor and outdoor use in industrial, commercial, banking, nuclear, data centre and airport environments.

Performance
Standard passage flow: 25–30 people per minute. In specific operating modes, flow can reach up to 60 people per minute.

Installation
Can be installed as a single unit or configured in batteries according to required passage capacity and site layout.

Dimensions
Passage widths available: 600 mm; 900 mm (1 UP); 1400 mm (2 UP); 1800 mm (3 UP).
Total heights available: 1200 mm; 1500 mm; 1800 mm.

Features

• PMR accessibility: Yes — compliant with accessibility standards
• Evacuation: Yes — compliant with evacuation norms (doors release for egress)
• Logistics configuration: Possible — wide passages for material handling
• Contactless operation: Yes — no direct handling required
• Compact design: Yes — reduced footprint for integration
• Detection: Yes — presence sensors and detection of malicious acts
• Manufactured in France: Yes — designed and produced in France

Technical specifications

• Brand: Bolloré
• Model: TF600
• Passage flow (standard): 25–30 people/min
• Passage flow (specific mode): up to 60 people/min
• Installation: single unit or battery configuration
• Widths available: 600 mm; 900 mm (1 UP); 1400 mm (2 UP); 1800 mm (3 UP)
• Total heights available: 1200 mm; 1500 mm; 1800 mm
• PMR accessibility: Yes
• Evacuation compliance: Yes
• Logistics configuration: possible
• Contactless operation: Yes
• Compact sizing: Yes
• Detection capability: Yes (malicious acts)
• Origin: Designed and manufactured in France
