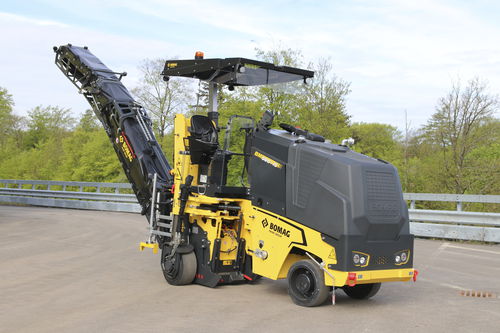

Compact cold planer BM 600/15-2

for concretefor asphalt

Overview
The second‑generation compact cold planer BM 600/15-2 from BOMAG is engineered for selective asphalt and concrete milling with enhanced operator ergonomics and simplified controls. Key design elements include a 45° swivel comfort seat, a 7‑inch full‑graphic levelling and operating display, and a conveyor with 2 x 30° swivel and hydraulic folding for transport.

Highlights and operator benefits

• Ergonomic seated operation on a fully vibration‑isolated platform
• Improved visibility to loading truck, side plate and cutting edge
• Intuitive 7" full‑graphic control display for levelling and machine functions
• Hydraulically foldable, height‑adjustable conveyor with wide swivel range
• BOMAG Telematics compatibility for fleet monitoring and uptime management

Key product features

• Emission stage: Stage V / TIER4f
• Engine power: 105.0 kW
• Working width: 600 mm
• Multiple milling drum types: standard LA15, fine milling LA6, POWER‑DRUM LA20
• Quick‑change milling drum system (centring pin, standardised bolting)
• Three drum speeds and variable milling speeds with 12 speed pre‑settings
• Mechanical drum drive
• Proportional adjustable water injection and automatic water‑saving device
• Wear‑free digital milling‑depth display and proportional depth adjustment
• Hydraulically operated side plates and front mouldboard; adjustable rear mouldboard preload
• Right side plate prepared for fast drum exchange
• Automatic load control and automatic traction distribution
• Drive options: 3‑wheel up to 6 km/h; 4‑wheel up to 10 km/h
• High material flow: height‑adjustable conveyor, broad swivel range, variable belt speed
• Optimised temperature management: air intake from above, exhaust to the side
• Fully vibration‑isolated operator platform; heated, height‑adjustable swivel seat (45°)
• Hydraulic multi‑quick‑coupling for conveyor operation
• Optional Whisper‑package for noise reduction

Fields of application
Selective milling of asphalt and concrete layers for repairs, partial or complete removal on motorways, federal and rural roads, urban works and roundabouts. Suitable for fine milling of markings as well as heavy removal using POWER‑DRUM. Variable milling depths enable large areas to be removed in a single pass.

Milling drum options and technology

• Standard milling drum (LA15): high performance for average depths and speeds
• Fine milling drum (LA6): designed for very thin layers and markings
• POWER‑DRUM (LA20): increases milling performance (~+30%), reduces crushing, fuel consumption and tool wear for hard materials
• BOMAG precision milling: drum geometry and tool arrangement for low vibration and homogeneous cutting

Maintenance & service
Design focuses on long service intervals and easy access: service points, tanks and mill area are concentrated and freely accessible. Quick‑change drum system and centralised maintenance points reduce downtime and service costs.

Documents available
Datasheet, brochures and service documents for machine specifications, options and maintenance instructions are available as product documents.

Technical specifications

• Model: BM 600/15-2
• Brand: BOMAG
• Emission stage: Stage V / TIER4f
• Engine power: 105.0 kW
• Working width: 600 mm
• Milling drum types: LA15 (standard), LA6 (fine), LA20 POWER‑DRUM; additional specialised drums available
• Drum speeds: 3 speeds; variable milling speeds; 12 speed pre‑settings
• Transport speed: up to 10 km/h (4‑wheel variant)
• Operator display: 7" full‑graphic levelling and control panel
• Conveyor: hydraulically foldable, 2 x 30° swivel, variable belt speed
• Options: fleet management BOMAG Telematics, Whisper‑package, weather protection roof, hydraulic hammer connection, various drum sizes and loading systems
