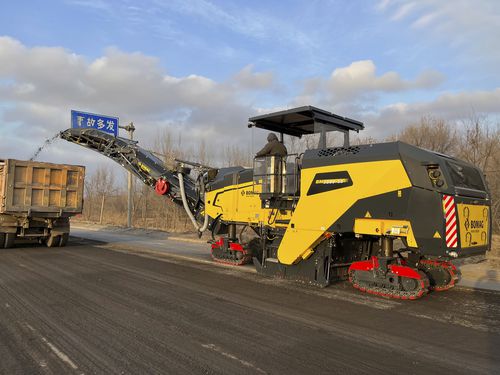

Large cold planer BM 2000/58

for concretefor asphalt

Overview
The BOMAG BM 2000/58 is a 2‑metre class cold planer designed for high‑productivity asphalt and concrete milling. Equipped with BOMAG Easy Level and efficient cutting systems, the machine offers precise milling, excellent visibility of the cutting edge and simplified service access.

Highlights

• Wear-optimised BMS 15 EVO exchange holder system for up to 20% fuel savings and extended tool life.
• Engine power (455 kW) matched to milling speed for high efficiency.
• Vibration‑insulated operator station with movable platform (sideways up to 200 mm).
• Intuitive control: two 7" full‑colour displays and BOMAG Fast Select for quick assistance selection.
• Easy maintenance: clear access to all service points via engine hood and large service flaps.
• Unobstructed all‑round visibility of cutting edge, side plates and conveyor area.

Fields of application
Selective removal of asphalt and concrete layers for road repair and renovation: motorways, major roads, rural roads and urban works (including roundabouts). Multiple milling depths enable rapid removal of large areas in a single pass.

Standards

• Milling technology with LA15 drum and side wear protection
• BOMAG BMS 15 L exchangeable toolholder (BMS 15 EVO options)
• Three milling‑drum speeds: 100 / 112 / 130 rpm
• Proportional water injection 0–12 l/min and automatic water saving device
• Levelling: two sides + slope; wear‑free digital milling depth display; proportional depth adjustment
• Hydraulically operated side plates (right 500 mm / left 400 mm) and front/rear mouldboards
• Hydraulically foldable conveyor with +65° swivel angle
• Camera system (discharge belt and rear), BOMAG Dual Filtration, BOMAG Easy Cut, BOMAG Easy Level
• Drive systems: steerable crawler drives, crab walk, variable transport and operating speeds
• Fully vibration‑isolated operator platform, adjustable dashboards and ergonomic service points
• Safety package: optimized noise design, emission‑compliant liquid‑cooled engine, working lights, emergency stops, back‑up alarm, mirrors, beacon

Options

• Track chains B3 size; storage for cutting tools on tracks
• Weather protection roof; plexiglass protection for side railings
• Water filling pump; high‑pressure cleaner; hose reel
• Dust reduction systems (ION DUST SHIELD)
• Auxiliary drum drive; compressed air system; additional motor for emergency drive
• Advanced lighting package (additional 142,000 lm); ballast weights; special colours
• Quick‑exchange drum systems; additional bearings; levelling and electronic support
• Additional cameras and scanners; BOMAG TELEMATIC; additional external Easy Level display

Technical specifications

• Commercial designation: BM 2000/58
• Emission stage: China 4
• Weight (CECE): 27,000 kg
• Power: 455 kW
• Working width: 2,000 mm
• Milling drum speeds: 100, 112, 130 rpm (selectable)
• Water tank capacity: 3,250 l
• Milling depth adjustment: proportional with wear‑free digital display
• Side‑plates stroke: right 500 mm, left 400 mm
• Conveyor swivel angle: +65° (hydraulically foldable)
• Turning circle: approx. 1.7 m
• Operator platform: fully vibration‑isolated; sideways movable up to 200 mm
