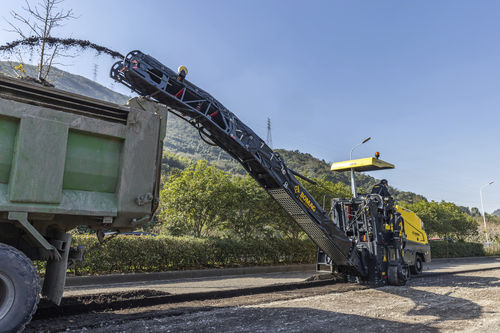

Large cold planer BM 1000/20

for concretefor asphalt

Overview
The BM 1000/20 cold planer combines a 164 kW engine with BOMAG cutting technology to deliver high productivity for selective and complete asphalt and concrete removal. Three variable drum speeds are selectable from the control panel to match the application, improving surface quality and reducing rotor wear. Advance travel speed is automatically maximized according to milling settings.

Fields of application

• Removing asphalt strips
• Excavating trenches
• Road repairs, cleaning and patching
• Selective milling and full removal of asphalt and concrete layers
• Work on rural roads, inner-city streets, roundabouts and tight corners

Key features

• Optimal visibility: spring-suspended seat with lateral shift up to 120 mm and powerful LED working lights
• Easy service access: wide-opening service doors give ground-level access to all maintenance points
• Advanced cutting technology: optimized drum design with BMS holder system (BMS 15 EVO) for reduced resistance and vibration; up to 20% fuel savings
• High-precision milling: wear-resistant digital displays show current milling depth and slope; standard milling depth controller
• Powerful drive: 164 kW engine with low fuel consumption
• High manoeuvrability: small milling radius (380 mm) allows work around manhole covers and in tight areas
• Flexible discharge: foldable conveyor adjustable up to 4,560 mm lift and swivels 25° to either side; conveyor can include working light
• Three selectable drum speeds from control panel; advance travel speed automatically adjusted and maximised
• Operator comfort: workstation for seated or standing operation, adjustable seat and arm-rest with integrated controls, rubber matting
• Safety & environment: liquid-cooled engine meeting emission stage, multiple working lights, rotary beacon and safety package with emergency-stop switches

Documents

• Datasheet: Datasheet_BM1000_20_PRE88601010_SA01 (PDF)
• Brochure: Brochure_BM1000_230_PRE140003_2203 (PDF)

Technical specifications

• Commercial designation: BM 1000/20
• Marque: BOMAG
• Emission stage: Stage IIIa / TIER3
• Approx. weight: 13,250 kg
• Engine power: 164.0 kW
• Working width: 1,000 mm
• Milling drum: LA18 (options: BMS 15 EVO / BMS05 compatible)
• Milling drum speeds: 3 variable speeds
• Adjustable water injection for milling
• Digital height indicator and wear-free digital milling-depth display
• Proportional milling-depth adjustment and full proportional speeds for height adjustment
• Hydraulically operated side-plates; manual front mouldboard; rear mouldboard with adjustable preload pressure
• Automatic load-control and automatic distribution of traction
• Drive: 4-wheel-drive, transport speed variable up to 8 km/h; right rear wheel manually foldable
• Foldable long conveyor (incl. 1 working light), conveyor lift up to 4,560 mm and 25° swivel
• Small milling radius: 380 mm (allows manhole cover milling)
• Fuel savings potential: up to 20% with optimized drum design and BMS holder system
• Operator ergonomics: adjustable seat (sit/stand), spring-suspended seat with lateral shift, ergonomic dashboard and arm-rest with integrated controls
• Available levelling systems: Levelling Basic (digital display/controller), Levelling Advanced 1 (slope sensor), mechanical level clock system
• Further options: weather protection roof, hose reel, various conveyor and drum options
