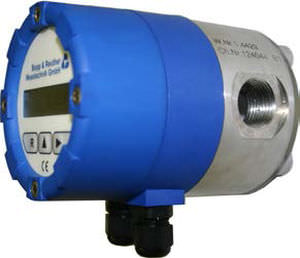

Oval gear flow meter Flowal® OR series
for fuelin-linecompact

oval gear flow meter
oval gear flow meter
oval gear flow meter
Add to favorites
Compare this product


Characteristics

Technology
oval gear
Fluid
for fuel
Installation
in-line
Other characteristics
compact
Volumetric flow rate

Min.: 0 l/min
(0 us gal/min)

Max.: 700 l/min
(184.9 us gal/min)

Process temperature

Min.: -10 °C
(14 °F)

Max.: 125 °C
(257 °F)

Process pressure

Min.: 25 bar
(362.59 psi)

Max.: 40 bar
(580.15 psi)

Description

Meters of the Flowal® series are based on a robust concept with simplicity and can be adapted to a wide field of applications. The innovative design is the result of merging long years experience with the latest technologies. The OR series are compact oval wheel meters with female threads and directly mounted compact multifunctional electronics MFE for the measurement of Newtonian, non-abrasive fluids such as water, oils, alkalis, acids, fats, alcohols, fuels, solvents, paints, inks, etc. An optional temperature sensor allows the compensation of volumetric expansion caused by temperature changes. The MFE-3 electronics offers the option to enter a density value and calculates mass. The display and the analog output are directly related to mass units.
