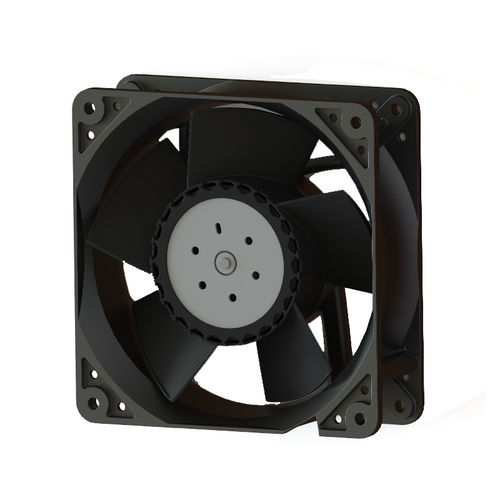

Axial fan F11938S

ductcoolingventilation

Product brief
High-speed, high-efficiency axial fan with long service life, driven by a brushless DC motor. Designed for industrial cooling and ventilation applications where compact dimensions and high static pressure are required.

Features

• Dimensions: 119 x 38 x 38 mm (4.69 x 1.50 x 1.50 in)
• Flow range: 424 ~ 514 m³/h (250 ~ 303 cfm)
• Static pressure range: 882 ~ 1,196 Pa (3.54 ~ 4.80 inH₂O)
• Motor: Brushless DC, highly efficient
• Motor life expectancy: up to 50,000 Hr
• Rated voltage: DC 24 V

Performance at nominal voltage
Max. Pressure @ Nominal Voltage [Pa (inH₂O)]: 1,196 (4.80)
Max. Flow @ Nominal Voltage [m³/h (cfm)]: 514 (303)

Purchasing information
Availability:
Quantity: configurable (default input value shown as 1)

Technical specifications

• Model: F11938S
• Product type: Axial fan
• Dimensions: 119 x 38 x 38 mm (4.69 x 1.50 x 1.50 in)
• Max. flow (range): 424 ~ 514 m³/h (250 ~ 303 cfm)
• Max. flow @ nominal voltage: 514 m³/h (303 cfm)
• Static pressure (range): 882 ~ 1,196 Pa (3.54 ~ 4.80 inH₂O)
• Max. pressure @ nominal voltage: 1,196 Pa (4.80 inH₂O)
• Motor type: Brushless DC motor
• Motor life expectancy: up to 50,000 Hr
• Rated voltage: DC 24 V
• Internal product id (site): 75177114
