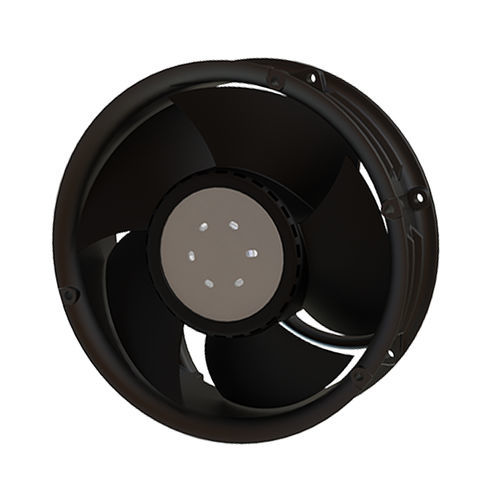

Axial fan F17251R

DC48VDCbrushless motor

Product Brief
Axial fan designed for high speed, high efficiency, long service life and low vibration for industrial applications.

Performance
Max. Pressure @ Nominal Voltage [Pa (inH₂O)]: 1,265 (5.07)
Max. Flow @ Nominal Voltage [m³/h (cfm)]: 939 (553)

Features

• Dimensions: 172 x 172 x 51 mm (6.77 x 6.77 x 2.00 in)
• Flow rate up to 939 m³/h (553 cfm)
• Static pressure up to 1,265 Pa (5.07 inH₂O)
• Brushless DC motor with long life expectancy, up to 50,000 Hr
• Rated Voltage: DC 48 V

Category
Axial Fan

Technical specifications

• Model: F17251R
• Dimensions: 172 x 172 x 51 mm (6.77 x 6.77 x 2.00 in)
• Max. Flow @ Nominal Voltage: 939 m³/h (553 cfm)
• Max. Pressure @ Nominal Voltage: 1,265 Pa (5.07 inH₂O)
• Motor type: Brushless DC
• Motor life expectancy: up to 50,000 Hr
• Rated Voltage: DC 48 V
