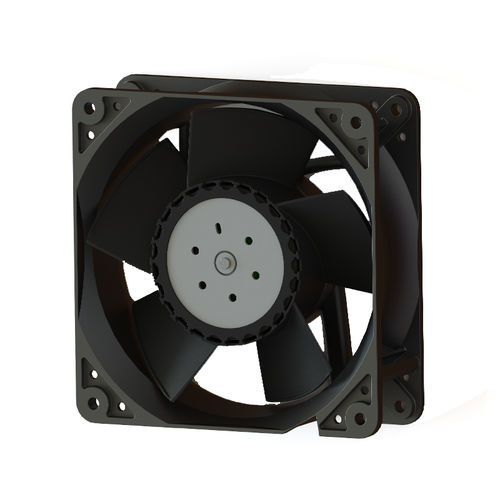

Axial fan F11938S

for air circulationcoolingventilation

Product Brief
A high-speed, high-efficiency axial fan designed for continuous operation in industrial cooling and ventilation applications. Brushless DC motor with an expected service life of up to 50,000 hours.

Key Specifications

• Model: F11938S
• Dimensions: 119 x 38 x 38 mm (4.69 x 1.50 x 1.50 in)
• Max Flow @ Nominal Voltage: 514 m³/h (303 cfm); typical range 424–514 m³/h (250–303 cfm)
• Max Static Pressure @ Nominal Voltage: 1,196 Pa (4.80 inH₂O); typical range 882–1,196 Pa (3.54–4.80 inH₂O)
• Rated Voltage: DC 24 V

Features

• Brushless DC motor for higher efficiency and reduced maintenance
• Long expected motor life: up to 50,000 hours
• Compact profile suitable for constrained installations
• High airflow and static pressure suitable for cooling and ventilation systems

Technical Specifications

• Product type: Axial fan
• Model: F11938S
• Dimensions: 119 x 38 x 38 mm (4.69 x 1.50 x 1.50 in)
• Max. Flow (Nominal Voltage): 514 m³/h (303 cfm); typical range 424–514 m³/h (250–303 cfm)
• Max. Static Pressure (Nominal Voltage): 1,196 Pa (4.80 inH₂O); typical range 882–1,196 Pa (3.54–4.80 inH₂O)
• Motor type: Brushless DC motor
• Expected motor life: up to 50,000 hours
• Rated Voltage: DC 24 V
