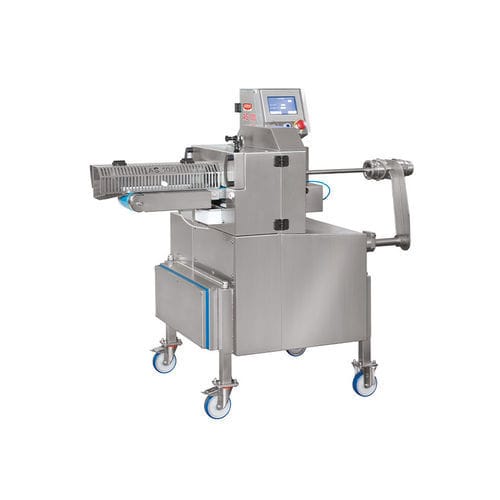

Sausage tying machine AS 100 TI
stainless steelautomatic

sausage tying machine
sausage tying machine
sausage tying machine
sausage tying machine
sausage tying machine
sausage tying machine
sausage tying machine
Add to favorites
Compare this product


Characteristics

Applications
for sausages
Other characteristics
stainless steel, automatic
Electric power

8 kW (11 hp)

Description

Our binding machine AS 100 TI suitable exclusively for product in collagen casing, maximum caliber 90 mm.“TI”, suitable for the customer, who demands the maximum of production performance, besides the automatic binding and filling, separates products into certain rows. The advantage of this model is that only one operator is enough to do the production. As equipment to the binding machine, besides the automatic system of casing’s brake, we have added the management of the cutting phase.From the control panel it is possible to program the single or multiple cut and also to set the loop formation system based on the seasoning of the product.The cutting device is totally and independently controlled from the control panel. The cutting blade is positioned to make it easy for the operator to change it.Production speed up to 120 ties/min, variable by weight, filling speed, filling machine model and casing. Our binding machine AS 100 TI is practical to fix to all the filling machines, it is equipped with a joint which permits to adjust the uneveness of the floor, to vary the filling pipe length and to load easily all the types of casing.Moreover if you use natural casing and you want to automate further the loading process, our casing spooler is available, easy to use, to clean and quick to disassemble. What distinguishes our machine from all the others is the integrated cut. After adjusting the space between each product from the control panel, you just need to decide the cut after a certain number of products. The products will be automatically pulled out by the extraction belt ready for the hanging and for the seasoning, already divided in the number you set.

VIDEO

Catalogs

AS 100 TI
AS 100 TI
2 Pages
