electronic coupler / fieldbus
S20-S3-BK+

Add to MyDirectIndustry favorites

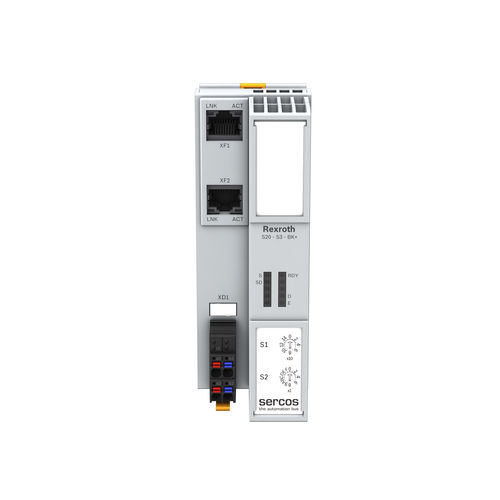

electronic coupler / fieldbus electronic coupler / fieldbus - S20-S3-BK+
{{requestButtons}}

Characteristics

  • Type:

    electronic

  • Applications:

    fieldbus

Description

Features

Sercos specification V1.3
Minimum Sercos cycle time 31.25 μs
2 RJ45 connections (with integrated switch)
Rotary code switch for assigning Sercos addresses
Up to 63 additional IndraControl S20 users can be connected
Electronic device nameplate
Diagnostic and status indicators


The address is easily adjustable from the outside using two rotary coding switches and the fieldbus connection is via RJ45 connectors. The IndraControl S20 bus coupler establishes the link between the IndraControl S20 system and the higher-level Sercos fieldbus.
