CNC lathe VTH C
vertical2-axiscolumn type

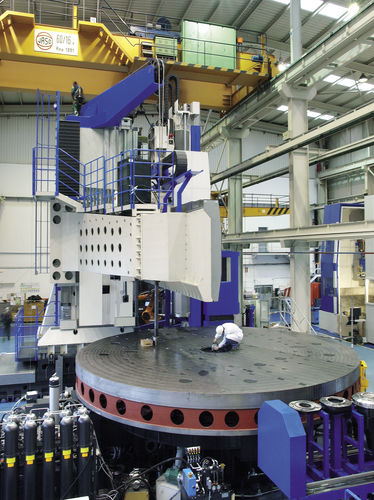

CNC lathe - VTH C - Bost Machine Tools Company S.L.U - vertical / 2-axis / column type
CNC lathe - VTH C - Bost Machine Tools Company S.L.U - vertical / 2-axis / column type
CNC lathe - VTH C - Bost Machine Tools Company S.L.U - vertical / 2-axis / column type - image - 2
CNC lathe - VTH C - Bost Machine Tools Company S.L.U - vertical / 2-axis / column type - image - 3
CNC lathe - VTH C - Bost Machine Tools Company S.L.U - vertical / 2-axis / column type - image - 4
CNC lathe - VTH C - Bost Machine Tools Company S.L.U - vertical / 2-axis / column type - image - 5
Add to favorites
Compare this product
Go to the Bost Machine Tools Company S.L.U website for more information

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
2-axis
Structure
column type
Applications
for aerospace applications, for oil industry applications
Associated function
milling, grinding, drilling
Options and accessories
with integrated pallet changer
Diameter

16,000 mm
(629.92 in)

Spindle speed

Min.: 40 rpm
(251.327 rad.min-1)

Max.: 70 rpm
(439.823 rad.min-1)

Axe Z

3,000 mm, 3,500 mm
(118 in, 138 in)

Rapids on X

10 m/min

Rapids on Z

10 m/min

Nominal power

37 kW, 64 kW, 82 kW, 131 kW
(50.3 hp, 87 hp, 111.5 hp, 178.1 hp)

Maximum torque

12,000 Nm, 1,000,000 Nm
(8,851 ft.lb, 737,562 ft.lb)

Description

Table diameter - mm - 6.000 – 8.000 Max. Load - kg - 1.000 - 350.000 Column stroke - mm - 0 - +/- 5.000 Turning Height - mm - 1.000 – 8.000 RAM cross section - mm - 310X310 – 500x500 RAM Stroke - mm - 1.000 – 3.500 ATC/AAC - Disc / Chain /Robot Enclosure - Peripheral / Full Control - Siemens / Fanuc
