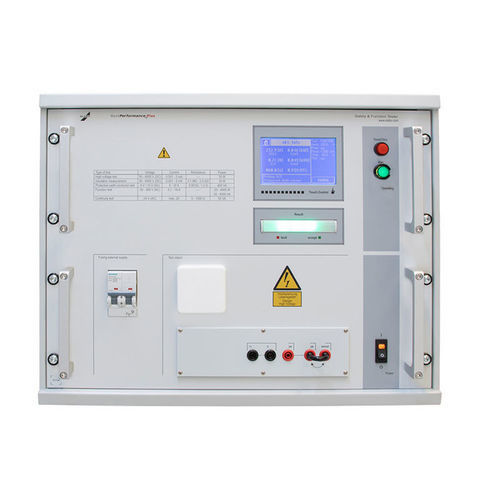

Insulation combined tester F7-1A

safetyelectrical safetyhigh-voltage

Description
Combined test systems for safety and functional testing. Designed to perform multiple test procedures required to demonstrate product safety. Typical test methods include protective earth resistance (PE), high-voltage (HV) tests and insulation resistance measurements.

Product overview
The product family comprises modular tester series addressing different needs: from ergonomic high-performance units with multicolor touch panels to automation-capable test stands. Devices support manual and automated test sequences and are intended for industry, material testing, solar industry and test laboratories.

Available models (excerpt)

• HighPerformance F7-1A / F7-1M — multicolor touch panel and ergonomic operation.
• HighPerformance F7-1A Z200 / F7-1M Z200 — modular with Z200 automation option.
• HighPerformance F7-1B / F7-1N — modular and user-friendly.
• HighPerformance F7-1C / F7-1P — manual or automated PE and insulation resistance testing.
• Combined tester G7-1A / G7-1M — high-precision measurements; suitable for insulation resistance testing (example: solar industry).
• Combined tester G7-1B / G7-1N — variants for material analysis and precise measurement tasks.
• Combined tester G7-1C / G7-1P — BestPerformance variants for DC high-voltage testing (HV DC).
• Combined tester G7-1G / G7-1T — also available as automated bench systems.
• Combined tester G7-1U / G7-1H — black-and-white touch panel for simple operation.
• Combined tester G8-1A / G8-1G — BestPerformancePLUS series for high-voltage tests (HV AC/DC depending on variant).

Features / Functions

• Designed for protective earth resistance (PE), insulation resistance and high-voltage (HV) testing.
• Model variants: manual operation, semi- or fully automatable solutions (e.g. Z200 automation).
• Control concepts: multicolor touch panel (HighPerformance variants) or high-contrast black-and-white panel; ergonomic operation.
• Modular construction to adapt to test sequences and customer requirements.
• Support for test sequences combining PE / IS / HV (configurable per model).
• Application areas: test and measurement laboratories, production, assembly, material testing, solar industry, maintenance and service.
• Optional integration into automated test systems and production test lines.

Technical specifications

• Product type: combined testers for safety and functional testing (tester series: F7, G7, G8, etc.).
• Test methods: protective earth (PE), insulation resistance, high-voltage testing (AC/DC) — depending on device type.
• Operation: touch panel (multicolor or B/W), configurable user guidance.
• Automation: available as manual, semi-automatic or fully automatic versions (e.g. Z200 option).
• Use cases: product safety verification, manufacturing and test environments, laboratories.
• Modularity: expandable with test/measurement modules and interfaces for line integration.
