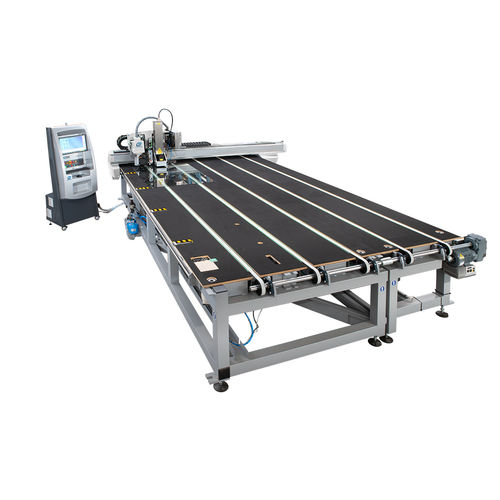

Glass cutting table 343 EVO series

for metalsautomatic

Cutting, grinding and marking table fully integrated with manual or automatic loading and breakout modules, zintended for applications requiring high productivity. The 343 EVO cutting table is fixed and complete with belt conveyor, automatic selection of cutting pressures, Shape Scanner + Scan Cad, optimiser on the machine and BCMS Windows. The EVO cutting platform is the top of the range Bottero cutting systems, offering exclusive performance and flexibility. Thanks to the option of equipping the machines with two additional tools besides the cutting tool, the EVO systems can be equipped, in addition to the low-e glass grinding, for example, for laser cutting or labelling of the processed piece. This option makes the EVO systems ideal for forming part of the automated and controlled production flow, which is typical in advanced glass factories and set forth in the “Industry 4.0” regulation. Application Surface removal system on Low-E glass with 200 mm peripheral wheel and maximum working speed of 200 m/min, is the ideal solution for large productions of low-emissivity glass. The approach stroke of the grinding wheel and its path are also optimised for shape cutting, allowing to speed up the machine cycle time, also thanks to the automatic measurement system of the grinding wheel consumption. You can install grinding wheels with different thicknesses for different production needs, and the wheel is also able to remove any protective films (TPF). The total coverage of the area being processed and the presence of the vacuum cleaner cancel the dispersion of dust in the environment, thus ensuring maximum safety for the operators.
