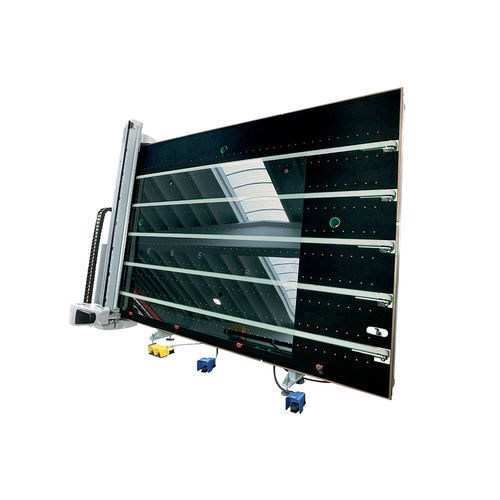

Glass cutting table 363 EVO series

electricair cushionvacuum

Overview
Integrated loading, cutting, grinding, marking and breakout table with manual or automatic loading and breakout modules. Can be coupled with cutting tables for laminated glass. Available in fixed and tilting versions. Equipped with air cushion with quick closing, belt conveyor, automatic cutting-pressure selection, Shape Scanner + Scan Cad, on-machine optimiser and BCMS Windows for process management.

Main qualities
The 363 EVO is Bottero’s high-performance cutting platform designed for flexible industrial glass processing. Option to install up to two additional tools besides the cutting tool (e.g. Low-E grinding, CO2 laser or automatic labelling). Suited for integration into automated production lines and Industry 4.0 environments.

Key application elements

• Surface removal system for Low-E glass using a 200 mm peripheral wheel; maximum working speed 200 m/min. Optimised approach stroke and path for shape cutting; automatic grinding-wheel wear measurement. Supports grinding wheels of various thicknesses and removal of protective films (TPF). Full-area coverage and vacuum extraction to minimise dust dispersion.
• CO2 laser marking system for permanent, high-definition identification on glass surfaces.
• Automatic labelling system for glass traceability; labelling and cutting cycles can run simultaneously with flexible label positioning and printed text options.

Features - Cutting bridge
Crosswise steel cutting bridge designed for maximum rigidity and resistance to torsion.

• Drive: two brushless motors with pinion-belt transmission.
• Transmission: electric axis motors for precise and balanced motion along the bridge.
• Carriage guidance: high-precision, low-noise linear sliding guides, ground and mounted on a machined surface.

Features - Carriage and cutting head

• Cutting head: motorised unit in aluminium alloy with rod and cutting or plastic scoring tool. Automatic glass-thickness measurement by linear encoder and automatic loading of cutting parameters from software. Cutting pressure controlled by a proportional solenoid valve and glass-surface compensation system.
• Safety: glass presence detector and breakable rod end element, easily replaceable to prevent mechanical stress on carriage and bridge in case of collision.
• Carriage: aluminium carriage with on-board head control and management electronics; optical sensor for electronic squaring and automatic shape acquisition via Shape Scanner.

Features - Bridge handling

• Guides: high-precision linear guides located opposite the operator breaking side to avoid residue on the guide.
• Racks: precision-machined racks ensuring maximum positioning and cutting accuracy, positioned facing down to prevent dirt accumulation.
• Materials: components made from highly durable, low-wear materials for long-term performance.
• Maintenance: easily accessible components for fast maintenance operations.

Technical specifications

• Maximum bridge speed during cutting: 160 m/min
• Maximum carriage speed during cutting: 200 m/min
• Maximum carriage speed during cutting (alternative entry): 160 m/min*
• Maximum carriage speed with 2 tools (Cut + PPL): 200 m/min
• Maximum carriage speed with 2 tools (Cut + Laser): 160 m/min
• Maximum cutting bridge speed with 2 tools: 160 m/min*
• Maximum cutting bridge speed with 3 tools: 160 m/min*
• (* ) 100 m/min with TPF
• Standard thicknesses cuttable: 2 ÷ 19 mm
• Optional thicknesses: 2 ÷ 25 mm
• Cutting accuracy on straight processes: ±0.15 mm
• Worktable height: 930 ± 20 mm
• 363 EVO Regular - Dimensions: 4825 x 3822 mm
• 363 EVO Regular - Maximum processable sheet: 3810 x 2750 mm
• 363 EVO Jumbo - Dimensions: 7125 x 4427 mm
• 363 EVO Jumbo - Maximum processable sheet: 6100 x 3355 mm
