Glass cutting table 363 BKM series

air cushiongantryautomatic

Product overview

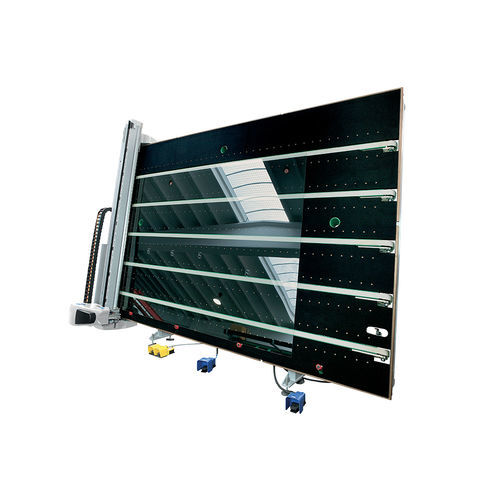

Integrated loading, cutting, grinding, marking and breakout table for flat glass, available with manual or automatic loading/breakout modules and compatible with laminated-glass cutting lines. The 363 BKM is offered in fixed and tilting versions and includes an air cushion with quick closing, belt conveyor, automatic cutting-pressure selection, Shape Scanner + ScanCad, on-machine optimiser and BCMS Windows control.

Main qualities

• Engineered for glass manufacturers seeking automated, flexible cutting solutions. BKM tables combine simple operation with industrial reliability based on a common development platform across cutting systems.
• Capable of linear and shaped cutting on glass sheets from 2 to 19 mm thickness, supporting small to medium series production and custom pieces.
• Available as a standalone unit (loading, cutting and breakout on the panel) or as a fixed-structure inline version for high productivity. Wide range of optional accessories and configurations.

Features
Every structural and functional element in the BKM range is designed to deliver high cutting precision and maximum productivity.

Cutting bridge

• Structure: Steel cutting bridge mounted crosswise for maximum rigidity and resistance to torsion.
• Drive: Dual brushless motors with gantry transmission for smooth, powerful motion.
• Carriage handling: High-precision, low-noise linear guides, ground and fitted on a machined surface for stable travel.

Carriage and cutting head

• Cut: Motorised cutting head with aluminium-alloy body and rod for cutting tools or plastic cutting. Automatic glass-thickness measurement by linear encoder and automatic loading of cutting parameters from software. Cutting pressure via proportional solenoid valve and glass surface compensation system.
• Safety: Glass presence detector and end-of-rod controlled breakage element, easily replaceable to protect carriage and bridge in case of collision.
• Trolley: Aluminium carriage housing head control electronics, with optical sensor for electronic squaring and automatic shape capture via Shape Scanner.

Bridge Handling

• Guides: High-precision, low-noise bridge sliding guides, ground and installed on a machined bed to ensure straight cuts without adjustment.
• Racks: Ground racks positioned downward to maximize positioning and cutting accuracy while minimizing dirt accumulation.
• Materials: Durable, low-wear components for long-term performance; components are easily accessible for quick maintenance.

Technical specifications
Working speed
Maximum bridge speed: 150 m/min
Maximum carriage speed: 150 m/min
Maximum grinding speed (Easy deletion): 80 m/min

Accuracy
Cutting accuracy on straight processes: ± 0.15 mm

Thicknesses which can be cut
Glass thickness: 2 ÷ 19 mm

Work table
Worktable height: 930 ± 40 mm

Versions
363 BKM Regular - Dimensions: 5250 x 2905 mm; Max sheet (Regular): 3810 x 2750 mm
363 BKM Jumbo - Dimensions: 7600 x 2905 mm; Max sheet (Jumbo): 6100 x 3355 mm

Characteristics / technical specifications

• Model: 363 BKM
• Maximum bridge speed: 150 m/min
• Maximum carriage speed: 150 m/min
• Maximum grinding speed (Easy deletion): 80 m/min
• Cutting accuracy (straight processes): ± 0.15 mm
• Processable glass thickness: 2 ÷ 19 mm
• Worktable height: 930 ± 40 mm
• Regular dimensions: 5250 x 2905 mm; Max sheet Regular: 3810 x 2750 mm
• Jumbo dimensions: 7600 x 2905 mm; Max sheet Jumbo: 6100 x 3355 mm
