Mechanical feeder
servo-drivenfor bottlesmotorized

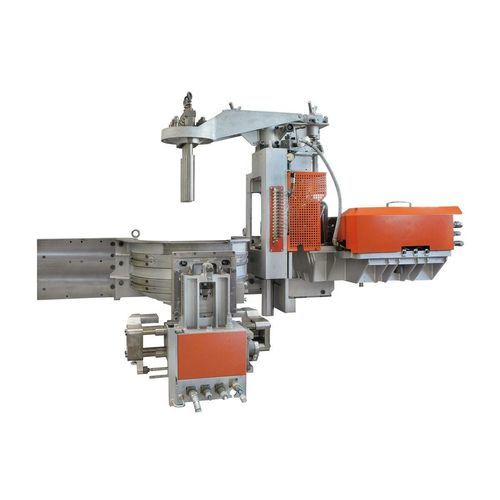

Mechanical feeder - Bottero - servo-driven / for bottles / motorized
Mechanical feeder - Bottero - servo-driven / for bottles / motorized
Mechanical feeder - Bottero - servo-driven / for bottles / motorized - image - 2
Mechanical feeder - Bottero - servo-driven / for bottles / motorized - image - 3
Mechanical feeder - Bottero - servo-driven / for bottles / motorized - image - 4
Add to favorites
Compare this product

Characteristics

Type
mechanical, servo-driven
Product applications
for bottles
Operating mode
motorized, high-speed, servo-controlled, single-line
Other characteristics
high-performance, high-rate

Description

Mechanical feeder
  • Spouts supported: 281 Standard and Deep, 703, 715 in single, double or triple gob configurations
  • Adjustable shearing angle: standard configuration from 30° right to 90° left; symmetric configuration from 30° left to 90° right
  • Enhanced mechanical components: bearing type 7" stroke plunger linkage, oil-bath shear mechanism, pneumatic spring
  • Optional upgrades: stand-alone tube rotation inverter control (RTC) and electrical tube height adjustment (THD)


Servo feeder mechanism
  • Direct retrofit for existing mechanical feeders supporting 281, 703 and 715 spouts
  • Servo motor provides consistent, repeatable feeding up to 240 cuts/min
  • Oil-bath gearbox for extended life of mechanical parts
  • Supports multiple gob weights for sampling and variable production


Servo Shear Mechanism
  • Dual-motor drive
  • Arcuate (curved) cut motion
  • Transmission by crank and connecting rod
  • Independent movement for each shear arm
  • Maximum frequency: 220 cuts/min
  • Available center distances:
    • SG
    • DG.3"
    • DG.4-3/8"
    • DG.5"
    • TG.3"
    • TG.4-3/8"


Related media
  • PDF catalogue (general catalogue for hollow glass equipment)


Technical specifications
  • Product family / technology: Gob forming
  • Spouts supported: 281 Standard and Deep, 703, 715 (single/double/triple gob)
  • Shearing angle range: 30° up to 90° (configuration dependent)
  • Mechanical feeder features: bearing type 7" stroke plunger linkage; oil-bath shear mechanism; pneumatic spring
  • Optional features: RTC (tube rotation inverter control), THD (electrical tube height adjustment)
  • Servo feeder performance: up to 240 cuts per minute (servo-driven)
  • Servo shear performance: dual-motor drive; up to 220 cuts per minute; independent arm movement; arcuate cut; crank-and-connecting-rod transmission
  • Available shear arm center distances: SG; DG.3"; DG.4-3/8"; DG.5"; TG.3"; TG.4-3/8"
