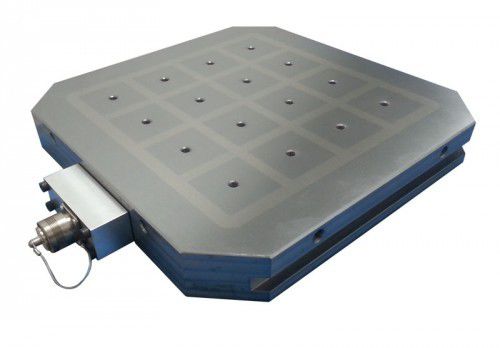

Electro-permanent magnetic chuck 40.60.33

sine tablefor grindingfor milling

Electropermanent Magnetic Pallet type SQ50-PAL High holding powerWaterproof constructionLow magnetic field . SQ1: gaps between the poles filled with epoxy resin . SQ3: gaps between the poles filled with stainless steel . Electropermanent magnetic system with very sturdy monobloc construction . Suitable for milling of large workpieces and slabs . All square poles equipped with M8 threaded holes . Power connection through watertight quick connector . Corresponding Control Unit and the Remote Control to be ordered separately: See 50.01.BUR.230/400 and 50.10.T10 Included with purchase: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :MillingDrillingContouringMachiningPlanning Force by pole :400 daNPole pitch :50x50 mmAdmissible wear of top plate :4 mmMagnetic field height :10 mm Options :- Sine table execution - Adapted to palletizing system: Erowa/3R/Hirschmann/Vischer&Boli
