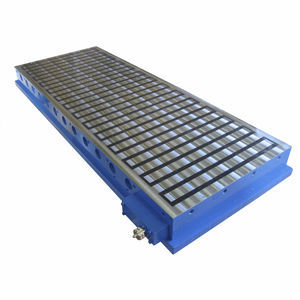

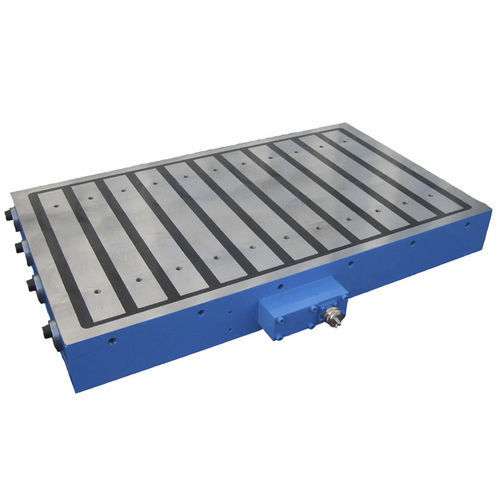

Electro-permanent magnetic chuck 10.32.40

rectangularfor grindingfor milling

High holding powerHeavy duty constructionWaterproof construction . Double magnet system with extremely high holding force . Top plate made of Steel+Epoxy resin . Sturdy construction suitable for heavy machinings . Ideal for milling of large workpieces and slabs . Corresponding Control Unit and the Remote Control to be ordered separately: See 50.02.BFR.400/480 and 50.10.T10 Included with purchase - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :MillingDrillingContouring Nominal force :170 N/cm²Pole pitch :56 mmAdmissible wear of top plate :5 mmMagnetic field height :15 mmVoltage :340 VDC Options :- Other sizes on request - Pole extensions to raise the workpieces - Metal armoured cable with watertight connector - Through holes to fix the chuck on the machine table - Cable connection on the long side
