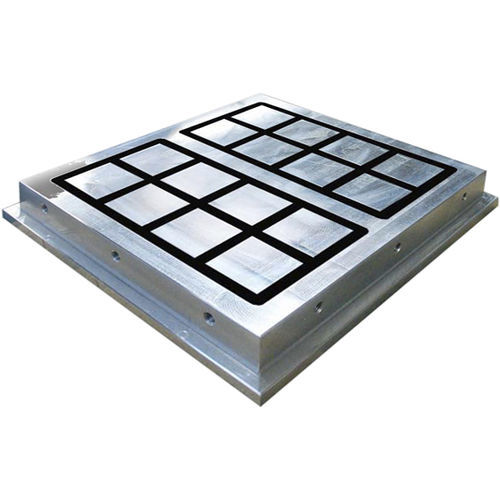

Electro-permanent with square poles magnetic chuck 10.33.50.SQ1 series

rectangularfor grindingfor milling

Square poles/ p=50x50 mmHigh holding powerHeavy duty constructionWaterproof construction . Electropermanent magnetic system with extremely sturdy monoblock construction . Space between the poles filled with epoxy resin . Ideal for milling of large workpieces and slabs . All square poles equipped with M8 threaded holes . Power connection through watertight quick connector . Corresponding Control Unit and the Remote Control to be ordered separately: See 50.01.BUR.230/400/480 and 50.10.T10 Included with purchase: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :MillingDrillingContouringPlanning Force by pole :400 daNPole pitch :50x50 mmAdmissible wear of top plate :4 mmMagnetic field height :10 mmVoltage :340 VDC Options :- Other sizes on request - Pole extensions to raise the workpieces - Through holes to fix the chuck on the machine table - Cable connection on the long side
