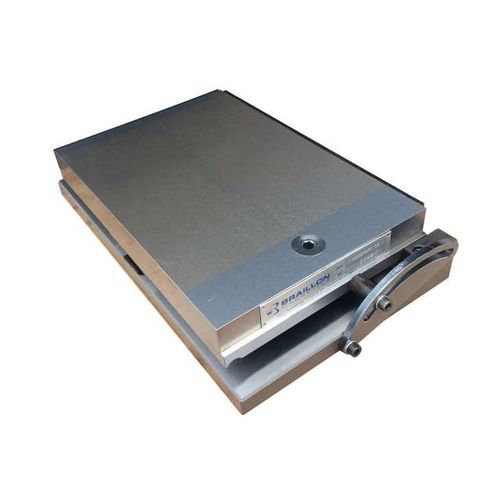

Sine table magnetic chuck 12.08 series

for grindingfor turningfor EDM

Single Sine Table with EDM Magnetic Chcuk type EDM/SS Heavy duty constructionWaterproof constructionLow magnetic field . With standard permanent magnetic chuck type EDM . Steel base body hardened to 60 HRC . Precision-ground surface for highest accuracy . Swiveling on long axis: from 0 to 45° Included with purchase: - 1 Actuating key - End stops - Table of sines Angular accuracy :± 5 sec Parallelism :± 0.005/100 mm Nominal force :100 N/cm² Pole pitch :2 mm Admissible wear of top plate :8 mm Magnetic field height :4 mm Options :- With other magnetic chucks on request - Swiveling on short axis - Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli
