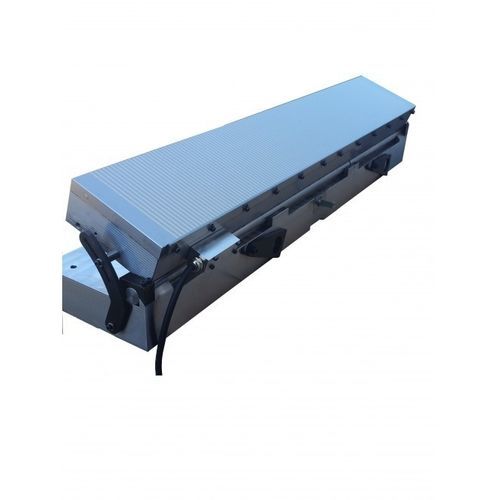

Sine table magnetic chuck 12.07.5

for grindingfor turningfor EDM

Precision Magnetic Sine Table type EPEFINE/SS Heavy duty constructionWaterproof construction . Steel base body hardened to 60 HRC and precision ground . Highest accuracy . Swiveling on long axis: from 0 to 45° . Equipped with electropermanent magnetic chuck type EPEFINE² Included with purchase: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :GrindingEDMmetrology Angular accuracy :± 5'' secParallelism :± 0.003/100 mmNominal force :110 N/cm²Pole pitch :5 mmAdmissible wear of top plate :8 mmMagnetic field height :4 mm Options :- With other magnetic chucks on request - Swiveling on short axis - Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli - Mounting slot in the base plate
