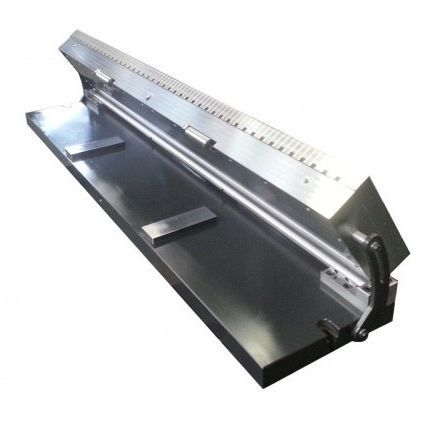

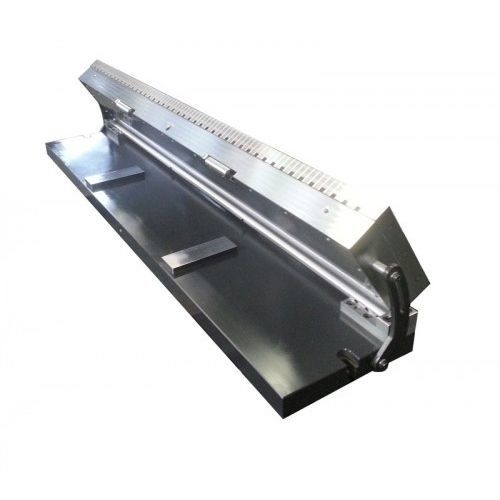

Sine table magnetic chuck 12.07.13 series

for grindingfor turningfor EDM

Precision Magnetic Sine Table type EPICA/SS Heavy duty construction Waterproof construction . Steel base body hardened to 60 HRC and precision ground . Highest accuracy . Swiveling on long axis: from 0 to 45° . Equipped with electropermanent magnetic chuck type EPICA Scope of dellivery: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :Grinding EDM metrology Angular accuracy :± 5'' sec Parallelism :± 0.003/100 mm Nominal force :110 N/cm² Pole pitch :13 mm Admissible wear of top plate :8 mm Magnetic field height :5 mm Options : - With other magnetic chucks on request - Swiveling on short axis - Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli - Mounting slot in the base plate
