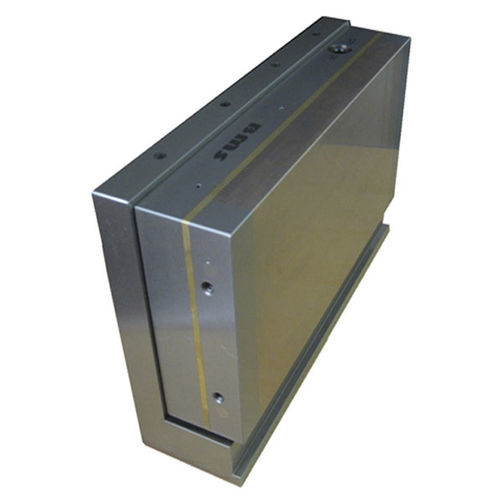

Permanent magnet magnetic chuck 12.10.EQ series

rectangularfor grindingfor EDM

High holding power Waterproof construction . Magnetic chuck with NEODYMIUM (rare earth) magnets . Parallel pole pitch with steel + brass laminations . For vertical clamping of workpieces Included with purchase: - 1 Actuating key Use : Grinding EDM metrology Squareness : +/- 0,002 mm Parallelism : +/- 0,002 mm Nominal force : 100 N/cm² Pole pitch : 2 mm 1 mm of brass 1 mm of steel Admissible wear of top plate : 6 mm Options : - With other magnetic chucks on request - Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli
