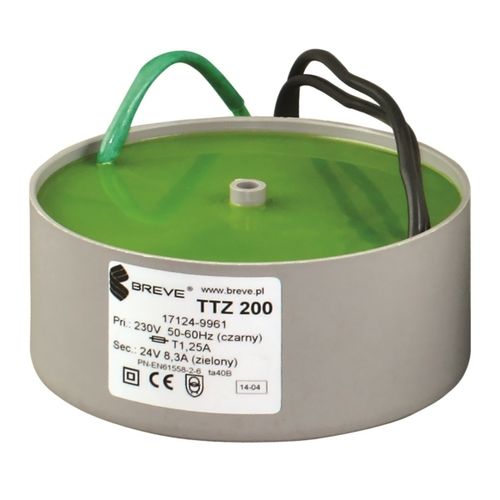

Toroidal transformer TTZ EOR series powercast resinsingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- cast resin
- Electrical characteristics
- single-phase
- Other characteristics
- toroidal, protection
- Output power kVA
Min.: 0.15 kVA
(0.203943 hp)Max.: 5 kVA
(6.798106 hp)- Primary voltage
230 V, 400 V
- Secondary voltage
24 V, 230 V
- Frequency
50 Hz, 60 Hz
Description
TTZ EOR - TOROIDAL TRANSFORMERS FOR ELECTRICAL RAIL HEATING SYSTEMS
Single-phase toroidal transformers intended for power supply of railway turnouts heating systems. Cast resin enables the usage in humid environment, prevents the transformer from mechanical damages and harsh weather conditions. Transformers are made with Class II insulation and protection rating IP00. Maximum ambient temperature is 40 degrees Celsius . Thermal classification: B(130 degrees Celsius). Manufactured in compliance with PN-EN 61558-1, PN-EN 61558-2-4 (2,5; 3,0; 4,0; 5,0 kVA), PN-EN 61558-2-6 (0,15; 0,2 kVA)Rated power: 0,15; 0,2; 2,5; 3,0; 4,0; 5,0 kVA
