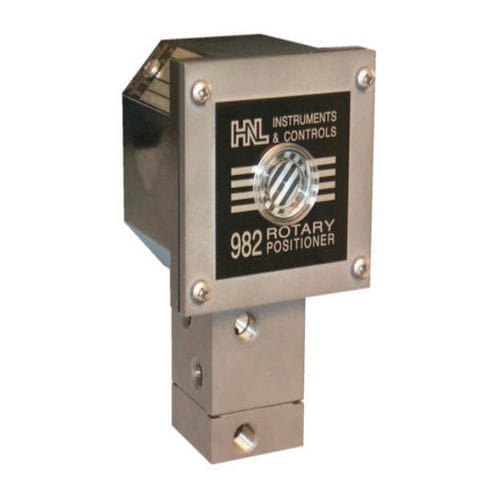

Pneumatic positioner 982 series

rotaryfor actuatorsprecision

Our Double-Acting Pneumatic Positioner (Pneumatic Positioner) is used to control the drive shaft rotation of doubleacting or single-acting rotary actuators. The positioner can be easily configured to provide either clockwise or anticlockwise rotation for a rising control signal (direct acting or reverse acting). Material: Aluminium or 316 Stainless Steel Supply Pressure: Up to 10 Bar Control Signal Pressure: 0.2 - 1.0 Bar (3 - 15 PSI) Control Accuracy: Linearity Error: 1% max Repeatability Error: 0.5% max Hysteresis Error: 0.5% max Overall Accuracy: 2% max Operating Temperature: -20ºC to +80ºC or dry gases CV: 0.14 Air Consumption: 10 Nl/min at a 2 bar supply - 30 Nl/min at a 8 bar supply Options: High Temperature Ratings; Additional Control Signal Ranges; Positioner with Gauges; Log. Cam Profile (non-linear response)
