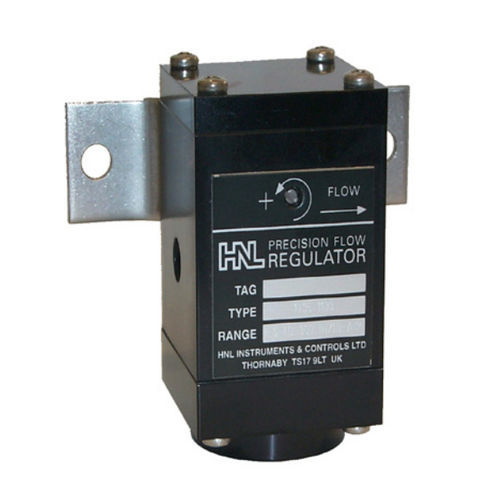

Volumetric flow regulator 1700 series

diaphragmpneumaticprecision

Our Precision Pneumatic Flow Regulators (Flow Regulators) have a high accuracy and are suitable on many applications where a constant flow of air is required. These applications include use in level measurement where a constant flow of air is required to a dip tube or in purging applications. Paint Finish: Epoxy hardened stoved enamel (Only for Aluminium models) Internal Components: Anodised Aluminium and Stainless Steel Diaphragm & Seals: Nitrile Valve Seat: Viton Material (1721): PMMA (Polymethal Methanylate) Pressure Ratings: (Proof rating = 1.5 x MWP) 1721: 8 Bar MWP 1735: 16 Bar MWP Temperature Ratings: -20ºC to +80ºC for dry gases Diameter (mm): IP66 Pneumatic Connections: 1/8” NPT Accuracy: +/- 2% Ranges 1721: 0.5 to 3 Nl/hr 1735: 0.5 to 300 Nl/hr Options: Available with bubbler or non-indicating
