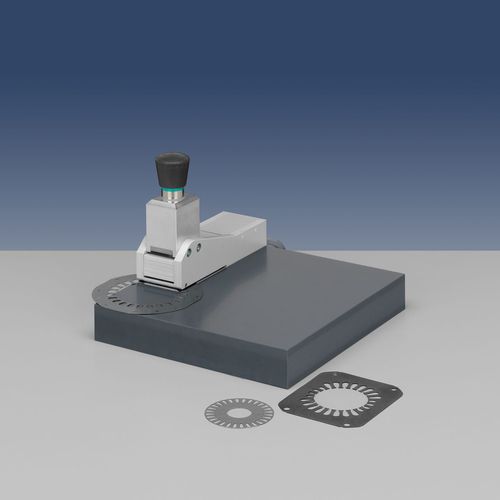

Magnetic properties tester

coilpartsindustrial

•Double yoke measuring coil system •For the quality control of punched parts and narrow slit strips •Suitable for all geometries and small material dimensions •Designed in accordance with IEC 60404-3 •Optimal sequencing of coils For measuring the magnetic properties (hysteresis loss etc.) of punched parts and narrow slit strips of oriented or non-oriented electrical steel. The material dimensions of an available and reproducible measurable sample can be as small as 8 mm x 3 mm because of the very favourable configuration of the yoke and coils. The C 510 measuring sensor covers a wide range of measuring requirements for punched parts and narrow slit strips. In addition, as a result of the very small measuring area, it enables a highly reliable inspection of material edges after cutting and punching.
