Stator test system BST-FA

for rotorsautomatic

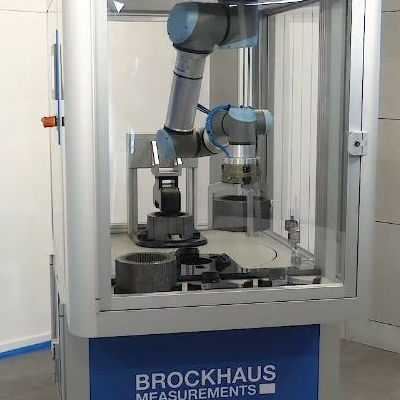

•Fully automated Stator Tester •100% quality check in production line •Short cycle time •Relative magnetic properties of the tested stator •High repetitive accuracy •BROCKHAUS® MPG Expert software for measurement, presentation and integration into QM systems Operating principle Automated measurement system measures stator and rotor stacks of defined size and allows a 100% testing in an automated production line. The software compares the measured results with a reference value and bad stacks can be sorted out automatically. In general power loss and/or permeability are measured at a certain working point (polarization value). Measuring cycle takes 3 to 15 seconds. Stator and Rotor core sensor to measure magnetic properties on defined test specimen for 100% quality check. The sensor is to be connected to the measuring system MPG 200D-BST-FA. The stator stack will be positioned by a handling system (not part of supply) into the correct measuring position. Then a u-shaped bracket with primary (excitation) and secondary (sensing) windings moves into the stator and makes contact with the opposite side. Measurement starts automatically.
