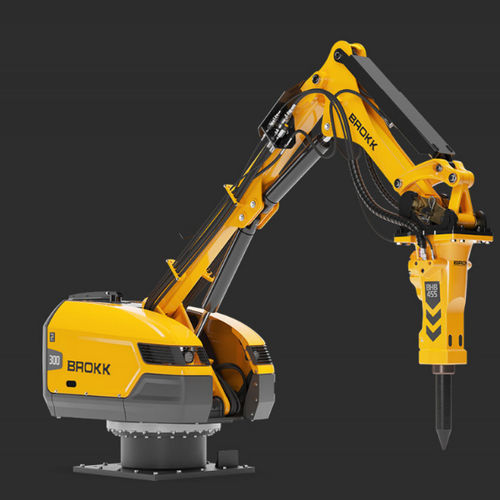

Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications
The Brokk 300 Pedestal Boom is adapted to suit primary breaking at mobile crushers, jaw crushers and grizzlies, the great flexibility makes it optimal for underground and confined space applications. The option of easy attachment changes and remote maneuvering with video and audio feedback makes it the ultimate plug-and-play solution for rock breaking at crushers and grizzlies.
Small footprint
360 degrees slewing
Perfect for spaces with low headroom
Plug-and-play solution
Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 455
Slewing speed
16 sec/360°
Hydraulic system capacity
95 l; 25 US gal
Pump type
Variable load-sensing
System pressure
17 MPa; 2466 psi
Increased pressure to attachment
23 MPa; 3336 psi
Pump flow 50 Hz
100 l/min; 26 US gal/min
Pump flow 60 Hz
120 l/min; 32 US gal/min
Power*
37 kW
Recommended fuse size*
63 A
Machine weight**
2615 kg; 5765 lbs
Recommended attachment weight
500 kg; 1102 lbs
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment
