Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications

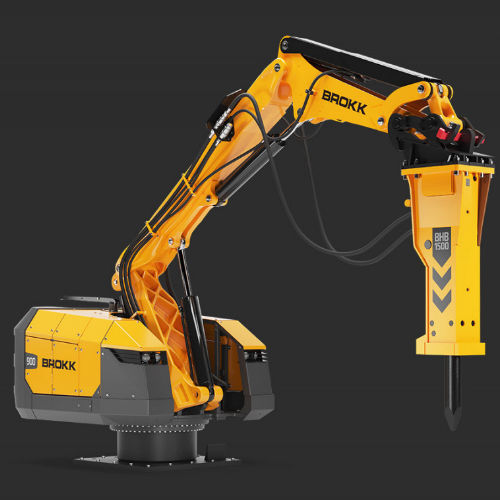

The advantages of a Brokk robot are many and in this modified solution the benefits become clear. The Brokk 900 Pedestal Boom allows you to apply the power and precision of Brokk’s demolition robots to primary breaking tasks that feed gyratory crushers and grizzlies. The option of easy attachment changes and remote maneuvering with video and audio feedback makes it the ultimate plug-and-play solution for rock breaking at gyratory crushers and grizzlies.
Small footprint
360 degrees slewing
Perfect for spaces with low headroom
Plug-and-play solution
Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 1500
Slewing speed
16 sec/360°
Hydraulic system capacity
230 l; 60.8 US gal
Pump type
Variable load-sensing
System pressure
18.5 MPa; 2683 psi
Increased pressure to attachment
25 MPa; 3626 psi
Pump flow 50 Hz
148 l/min; 39 US gal/min
Pump flow 60 Hz
178 l/min; 47 US gal/min
Power*
71 kW
Recommended fuse size*
125 A
Machine weight**
7150 kg; 15,763 lbs
Recommended attachment weight
1500 kg; 3307 lbs
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment
