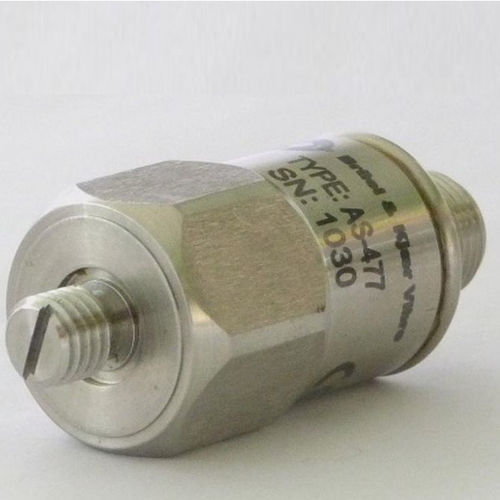

Constant-current acceleration sensor AS-477sensitivitywired
Add to favorites
Compare this product
Characteristics
- Other characteristics
- sensitivity, constant-current, wired
- Frequency
Max.: 14,000 Hz
Min.: 0.2 Hz
Description
Type: CCS
Sensitivity: 500 mV/g
Min. Temp: -50°C
Max. Temp: +120°C
Hazardous area approval: no
Accessory/ connection cable type:
AC-1411: double-wired connection cable with straight plug (M12)
AC-1412: double-wired connection cable with angled plug (M12)
The sensor is suitable for the recording of high and low frequency signals. Typical applications are, for example,the monitoring of transmissions or cooling fans in wind turbines, heavy-duty and planetary gears or large fans
