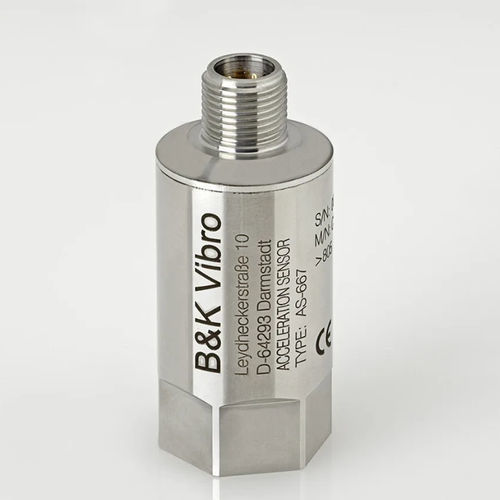

Constant-current acceleration sensor AS-667sensitivitywired
Add to favorites
Compare this product
Characteristics
- Other characteristics
- sensitivity, constant-current, wired
- Frequency
Min.: 0.5 Hz
Max.: 13,000 Hz
Description
Sensitivity: 100 mV/g
Frequency range: 0.5 Hz … 13 kHz (±3 dB)
Min. Temp: -55 °C
Max. Temp: +125 °C
Hazardous area approval: no
Accessory/ connection cable type:
AC-1411: double-wired connection cable with straight plug (M12)
AC-1412: double-wired connection cable with angled plug (M12)
AC-3360: threaded bolt, 1/4″ – 28 UNF to M8
AC-3361: threaded bolt, 1/4″ – 28 UNF to 1/4″- 28 UNF
UA1281: Magnet mount including glue-on disc
• Sensor AS-667
• 1 x Threaded bolt M8x1,25 to M8x1,25
• 1 x Threaded bolt M8x1,25 to 1/4" – 28 UNF
• Documentation
