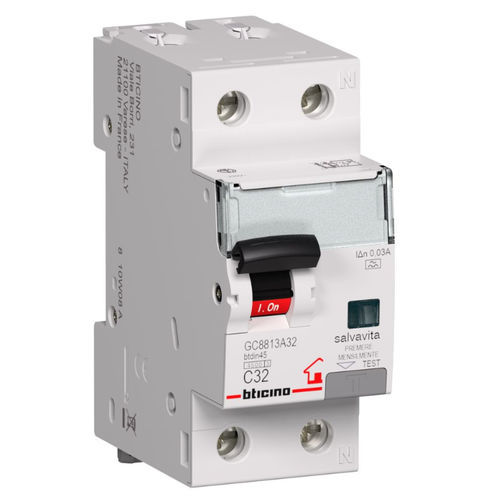

Thermal-magnetic residual current circuit breaker GC8813A32single-phase2-poleDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- thermal-magnetic
- Electrical characteristics
- single-phase
- Number of poles
- 2-pole
- Other characteristics
- DIN rail, type A
- VAC
230 V
- Rating
32 A
Description
Product overview
BTDIN RS - 1P+N thermal-magnetic with earth leakage protection (RCBO) curve C - breaking capacity 4.5kA - residual differential current Idn=0.03A (Type A) - 2 modules DIN - 230V - In=32A
Technical features (table)
Brand: BTicino
Reference Standard: CEI EN 61009-1
Rated voltage: 230Vac
Input current: 32A
Differential current IDN: 0.03A
Breaking capacity ICN: 4.5kA
Switching curve: C
Differential type: A
Modules: 2
Poles: 2P (1P+N)
Protection class: IP20
Height: 83mm
Width: 35.6mm
Depth: 76mm
Maximum cable section: 25/35 mm²
Series: Btdin
Commercial data
Minimum quantity: 1
Sales unit: 1
EAN code: 8005543814918
Certifications
IMQ (certificate image shown on product page)
Technical specifications
BTDIN RS - 1P+N thermal-magnetic with earth leakage protection (RCBO) curve C - breaking capacity 4.5kA - residual differential current Idn=0.03A (Type A) - 2 modules DIN - 230V - In=32A
Technical features (table)
Brand: BTicino
Reference Standard: CEI EN 61009-1
Rated voltage: 230Vac
Input current: 32A
Differential current IDN: 0.03A
Breaking capacity ICN: 4.5kA
Switching curve: C
Differential type: A
Modules: 2
Poles: 2P (1P+N)
Protection class: IP20
Height: 83mm
Width: 35.6mm
Depth: 76mm
Maximum cable section: 25/35 mm²
Series: Btdin
Commercial data
Minimum quantity: 1
Sales unit: 1
EAN code: 8005543814918
Certifications
IMQ (certificate image shown on product page)
Technical specifications
- Type: RCBO (thermal-magnetic with earth leakage protection)
- Rated operational voltage: 230Vac
- Rated current (In): 32A
- Residual operating current (Idn): 0.03A
- Residual current type: Type A
- Breaking capacity (ICN): 4.5kA
- Tripping characteristic curve: C
- Poles: 2P (1P+N)
- Number of modules: 2 (DIN rail)
- Protection degree: IP20
- Dimensions (H x W x D): 83mm x 35.6mm x 76mm
- Maximum cable section: 25/35 mm²
- Applicable standard: CEI EN 61009-1
