- Wing nut
- BTS Befestigungselemente-Technik GmbH

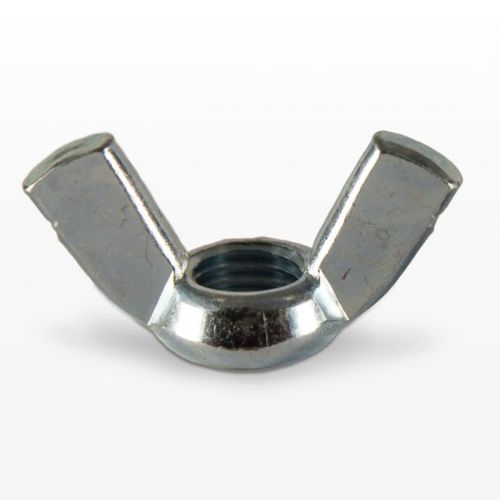

Wing nut steelstainless steelnickel-plated
Add to favorites
Compare this product
Characteristics
- Types
- wing
- Material
- steel, stainless steel, nickel-plated
- Nominal diameter
Max.: 20 mm
(0.79 in)Min.: 3 mm
(0.12 in)- Height
Max.: 31.2 mm
(1.228 in)Min.: 8.8 mm
(0.346 in)- Width
Max.: 66.5 mm
(2.62 in)Min.: 18.5 mm
(0.73 in)
Description
Wing nuts
American form | cold-formed
Metric thread from M3 to M20 available while stocks last
On request: Inch thread, special parts based on the American form, e.g. with sealing hole
Packaging:
Standard or according to customer specification
Material:
Steel non-plated, zinc-plated, nickel-plated acc. to DIN EN ISO 4042, brass non-plated, nickel-plated acc. to DIN EN ISO 4042, stainless steel A2 or A4, pickled, passivated
Tolerance:
Metric thread 7 H (non-plated 7 G) acc. to DIN EN ISO 965-1
