Finishing milling cutter 0008604184

chamferingfor woodfor chamfers

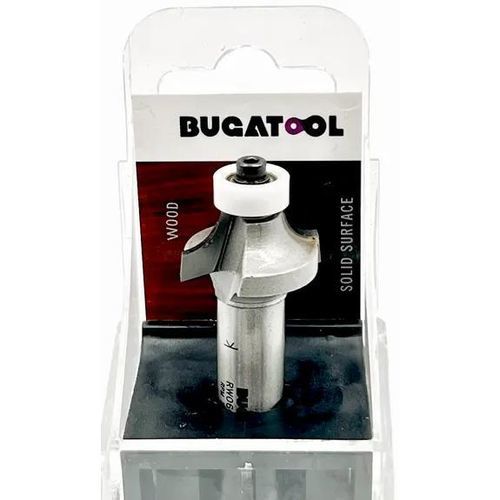

Quarter-round router bit (R10) designed for profiling and rounding panel edges, engineered for Solid Surface S12 with a 16 mm cutting height. It is equipped with two HSS blades and a Delrin bearing to prevent marking sensitive materials.

Primary use and features

• Type: quarter-round / edge profiling router bit for rounding panel edges.
• Compatibility: for Solid Surface S12.
• Blades: 2 HSS blades for clean, efficient cutting.
• Bearing: Delrin bearing designed to avoid marking surfaces.
• Application: edge profiling of panels in wood and solid surface materials.

Detailed description

• Specifically designed to produce a clean and consistent quarter-round profile on panel edges.
• The two HSS blades deliver smooth cutting and facilitate edge finishing operations.
• The Delrin bearing prevents surface marks during machining, improving the finish on sensitive materials.

Specifications / technical details

• Diameter: 12 mm
• Cutting height: 16 mm
• Radius: R 10
• Number of blades: 2 (HSS)
• Bearing: Delrin (to avoid marking materials)
• Use: edge rounding / panel edge profiling (wood, solid surface)
• DirectIndustry reference: 0008604184
