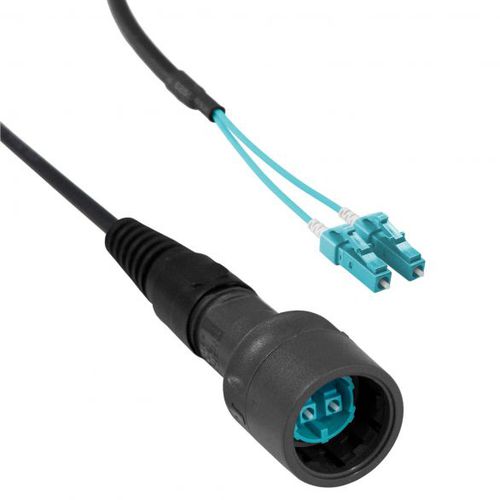

Fiber optic duplex connector 6000 SeriesdataLCcircular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- LC, fiber optic duplex
- Shape
- circular
- Connection type
- plug-in
- Material
- polyamide
- Product applications
- cable
- Domain
- outdoor, marine
- Protection class
- IP66, IP68, IP69K
- Other characteristics
- panel-mount, in-line, lightweight, halogen-free, self-extinguishing
Description
- Sealed to IP66 IP68 and IP69K when mated
- IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks Duplex LC-Type Interface
- Cabled Versions: 0S1, 0M1, 0M3
- Cable range from 5 to 450M
- Diameter over coupling ring 32.0mm
- Flex, Flex In-Line and Rear Panel
- Secure, proven locking system
- 30o twist locking. Tamperproof lock prevents accidental un-mating
- All plastic body version; UL94-V0 rated, UV stable, halogen free Light-weight, self-extinguishing material suitable for long-term outdoor use.
- Sealing caps available to maintain IP68 rating
- EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1
